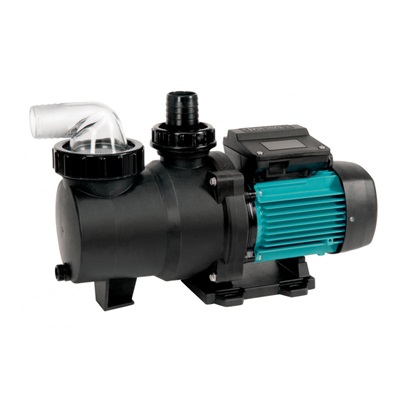

Espa Niper 1 350M (replacement instead)
Product ID | 00800001 |
Brand | Espa |
Voltage | 1x230V |
Height in mm | 219 |
Frequency | 50 Hz |
Characteristics | Kunststof |
Maximum head in mwc | 9 |
Maximum flow in L/min | 125 |
Capacity in m3/h at 4 bar | 6 |
Capacity in m3/h at 6 mwc | 4.5 |
Capacity in m3/h at 8 mwk | 3 |
Capacity in m3/h at 9 mwc | 1.5 |
Article number factory | 1783503 |
Type / Model | Niper |
Power in Kw | 0,18 |
Breedte in mm | 204 |
Lengte in mm | 305 |
Replacement: art. 00800051 Espa Nox 25 6M
Small, powerful pump, which is perfect for water recirculation of small ground pools. Possibly in combination with a sand or hair filter. The pump has a built-in front filter to filter the biggest parts up front.
Construction
Pump case, foot, and impeller in technopolymer.
Shaft in RVS AISI 420.
Mechanical seal in graphite alumina.
Motor housing in aluminum.
Motor
Asynchronous 2-pole.
Isolation class F.
Protection IP55.
Built-in thermal protection.
Included:
Couplings for suction and discharge pipes 32 en 38 mm.
Small, powerful pump, which is perfect for water recirculation of small ground pools. Possibly in combination with a sand or hair filter. The pump has a built-in front filter to filter the biggest parts up front.
Construction
Pump case, foot, and impeller in technopolymer.
Shaft in RVS AISI 420.
Mechanical seal in graphite alumina.
Motor housing in aluminum.
Motor
Asynchronous 2-pole.
Isolation class F.
Protection IP55.
Built-in thermal protection.
Included:
Couplings for suction and discharge pipes 32 en 38 mm.
Keywords: Zwembadpomp
PDF download:

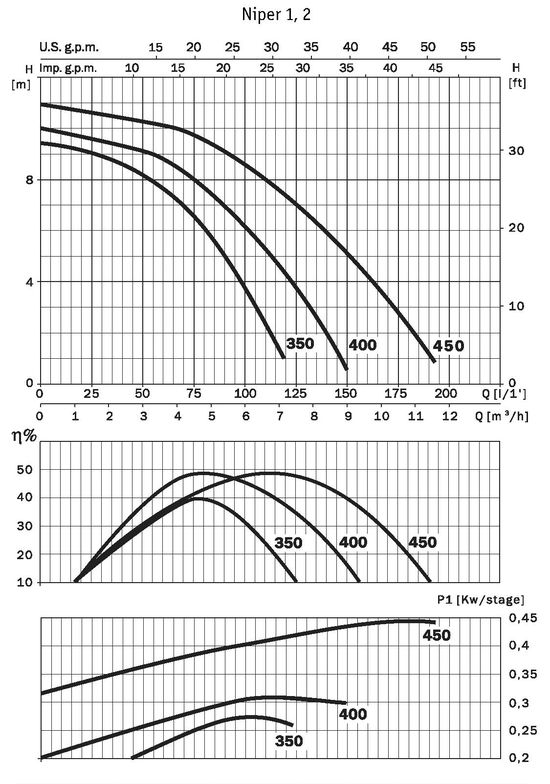

click here for comprehensive technical data
Stock | 0 pieces |
