Condor pressure transmittor CTX100 0-10 bar
| Art ID | 51500025 |
|---|---|
| Description | Condor pressure transmittor CTX100 0-10 bar |
| In stock | 1 |
| Delivery time | Directly available |
| Price excluding taxes | €241,23 |
| Price incl. VAT | €291,89 |
€291,89
(Incl. btw)
Amount
Ordered before 2:00 PM on workdays, shipped the same day!
Characteristics
| Article number | 51500025 |
|---|---|
| Merk | Condor |
| Artikelnummer fabrikant | CTX 100 - 10 |
| Aansluiting in inch | ¾ M |
| Max. druk in bar | 10 |
Description

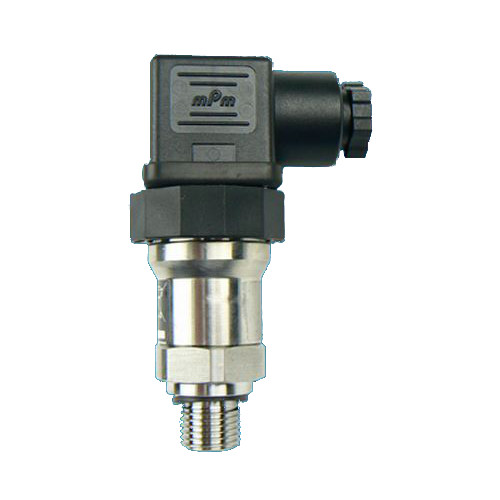

Condor pressure transmitter CTX100 0-10 bar 4-20mA, connector
Electric transmitter with integrated (relative) pressure sensor for direct built-in/assembly. Output signal is 4-20 mA. Electric connection takes place by means of a GDM 3011 plug. The transmitter has a stainless steel casing and ceramic cell.
Quality marks: EN50081-1 EN50082-1
Maximum overpressure: 200% of measurement range
Burst: pressure 300% of measurement range
Protection class: IP65
Operating temperature: -25 t/m 85 degrees of Celsius
Connection: G1/4 BSP male
PDF download click here for technical specifications.
