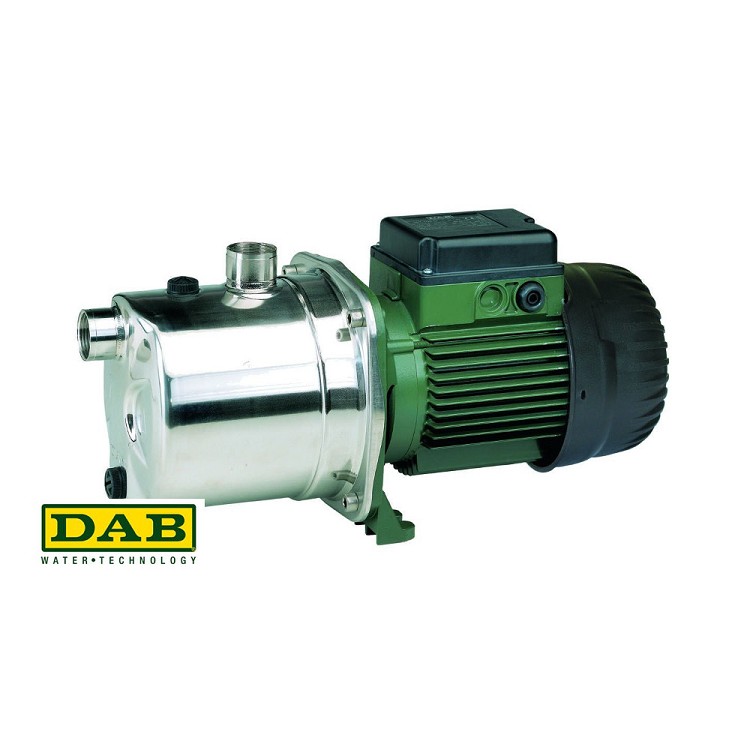

Dab Jetinox 082M

Product ID	01400069
Brand	Dab
Voltage	1x230V
Frequency	50 Hz
Characteristics	Zelfaanzuigend
Maximum head in mwc	40
Maximum discharge head in bar	4
Maximum flow in L/min	60
Capacity in m3/h at 3 bar	1.8
Capacity in m3/h at 2 bar	3.6
Article number factory	102640020
Type / Model	Jetinox
Power in Kw	0,6

Self-priming centrifugal pump with excellent suction capacity even when there are air bubbles. Particularly suitable for water supply in domestic installations, smallscale agriculture, gardening and wherever self- priming operation is necessary.

Jet: cast iron pump body.
Jetinox: stainless steel pump body.

M models are single-phase versions on 220 volt. The T models are three-phase versions and need a correctly set motor protection according to current safety norms.

• Protection class: IP 44
• Protection level therminal board: IP55 (for single-phase)
• Isolation class: F
• Built according to IEC-norms 61-69 (EN 60335-2-41)
• Temperature reach liquids: - 10°C till + 35°C for domestic use and - 10°C till + 40°C for other use
• Pumped liquid: clean, free from solids or abrasive substances, not viscous, not aggressive, not crystallised and chemically neutral. Close to characteristics of water.
• Maximum operation pressure: 6 bar (600 kPa) for Jet and 8 bar (800kPa) for Jetinox

Stock

1 pieces
