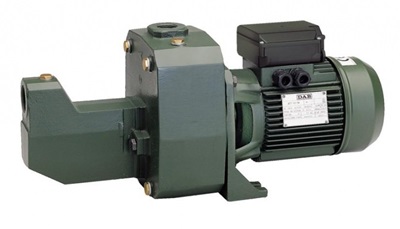

DAB jet 251T
| Art ID | 01400037 |
|---|---|
| Description | DAB jet 251T |
| In stock | |
| Delivery time | 3 business days |
| Price excluding taxes | €677,00 |
| Price incl. VAT | €819,17 |
€819,17
(Incl. btw)
Amount
Out of stock, please contact us. Delivery time 5 days.
Characteristics
| Article number | 01400037 |
|---|---|
| Merk | Dab |
| Voltage | 3x400V |
| Frequentie | 50 Hz |
| Uitvoering | Zelfaanzuigend |
| Max. opvoerhoogte in MWK | 60 |
| Max. debiet in L/min | 120 |
| Max. debiet in m3/uur | 7,2 |
| Artikelnummer fabrikant | 60145849 60179885 |
| Type / Model | Jet |
| Vermogen in kilowatt | 1,85 |
Description
Self-priming centrifugal pump with excellent suction capacity even when there are air bubbles. Particularly suitable for water supply in domestic installations, smallscale agriculture, gardening and wherever self- priming operation is necessary.
Jet: cast iron pump body.
Jetinox: stainless steel pump body.
M models are single-phase versions on 220 volt. The T models are three-phase versions and need a correctly set motor protection according to current safety norms.
- Protection class: IP 44
- Protection level therminal board: IP55 (for single-phase)
- Isolation class: F
- Built according to IEC-norms 61-69 (EN 60335-2-41)
- Temperature reach liquids: - 10°C till + 35°C for domestic use and - 10°C till + 40°C for other use
- Pumped liquid: clean, free from solids or abrasive substances, not viscous, not aggressive, not crystallised and chemically neutral. Close to characteristics of water.
- Maximum operation pressure: 6 bar (600 kPa) for Jet and 8 bar (800kPa) for Jetinox
PDF download click here for technical specifications.
