DAB jet 151T
Product ID | 01400036 |
Brand | Dab |
Voltage | 3x400V |
Frequency | 50 Hz |
Characteristics | Zelfaanzuigend |
Maximum head in mwc | 58.2 |
Maximum flow in L/min | 70 |
Article number factory | 60145787 |
Type / Model | Jet |
Power in Kw | 1,10 |
Self-priming centrifugal pump with excellent suction capacity even when there are air bubbles. Particularly suitable for water supply in domestic installations, smallscale agriculture, gardening and wherever self- priming operation is necessary.
Jet: cast iron pump body.
Jetinox: stainless steel pump body.
M models are single-phase versions on 220 volt. The T models are three-phase versions and need a correctly set motor protection according to current safety norms.
Jet: cast iron pump body.
Jetinox: stainless steel pump body.
M models are single-phase versions on 220 volt. The T models are three-phase versions and need a correctly set motor protection according to current safety norms.
- Protection class: IP 44
- Protection level therminal board: IP55 (for single-phase)
- Isolation class: F
- Built according to IEC-norms 61-69 (EN 60335-2-41)
- Temperature reach liquids: - 10°C till + 35°C for domestic use and - 10°C till + 40°C for other use
- Pumped liquid: clean, free from solids or abrasive substances, not viscous, not aggressive, not crystallised and chemically neutral. Close to characteristics of water.
- Maximum operation pressure: 6 bar (600 kPa) for Jet and 8 bar (800kPa) for Jetinox
PDF download:

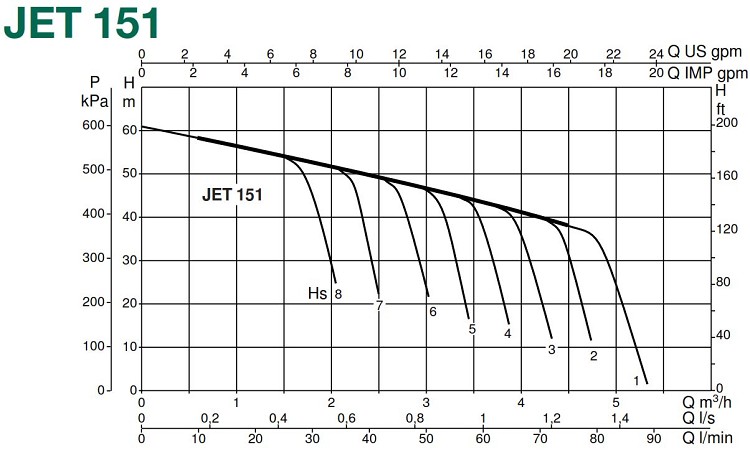

click here for comprehensive technical data
Stock | 0 pieces |
