Dab Jet 132M
| Art ID | 01400050 |
|---|---|
| Description | Dab Jet 132M |
| In stock | 1 |
| Delivery time | Directly available |
| Price excluding taxes | €294,00 |
| Price incl. VAT | €355,74 |
€355,74
(Incl. btw)
Amount
Ordered before 2:00 PM on workdays, shipped the same day!
Characteristics
| Article number | 01400050 |
|---|---|
| Merk | Dab |
| Voltage | 1x230V |
| Frequentie | 50 Hz |
| Uitvoering | Zelfaanzuigend |
| Max. opvoerhoogte in MWK | 45,6 |
| Max. debiet in L/min | 80 |
| Max. debiet in m3/uur | 4,8 |
| Artikelnummer fabrikant | 102660100 |
| Type / Model | Jet |
| Vermogen in kilowatt | 1,00 |
Description

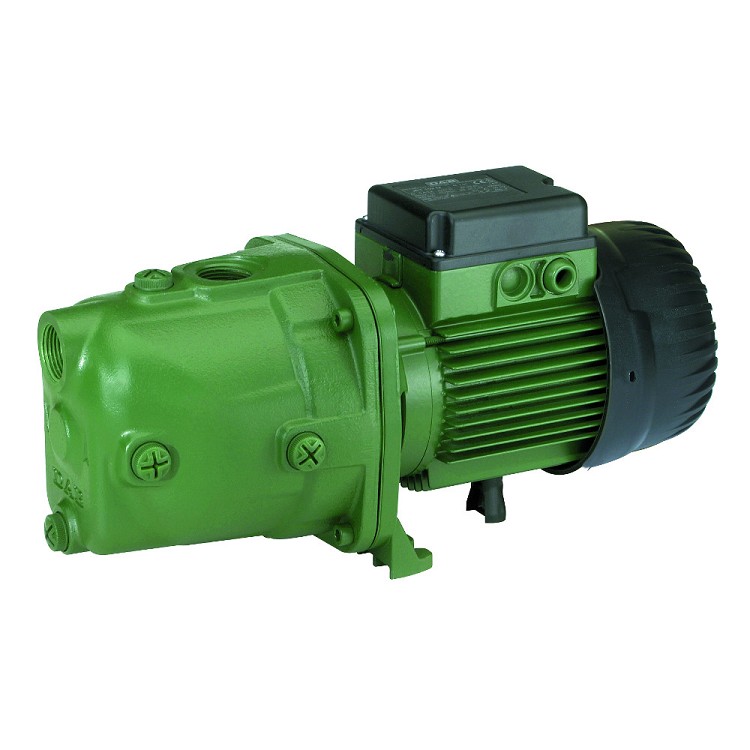

Self-priming centrifugal pump with excellent suction capacity even when there are air bubbles. Particularly suitable for water supply in domestic installations, smallscale agriculture, gardening and wherever self- priming operation is necessary.
Jet: cast iron pump body.
Jetinox: stainless steel pump body.
M models are single-phase versions on 220 volt. The T models are three-phase versions and need a correctly set motor protection according to current safety norms.
- Protection class: IP 44
- Protection level therminal board: IP55 (for single-phase)
- Isolation class: F
- Built according to IEC-norms 61-69 (EN 60335-2-41)
- Temperature reach liquids: - 10°C till + 35°C for domestic use and - 10°C till + 40°C for other use
- Pumped liquid: clean, free from solids or abrasive substances, not viscous, not aggressive, not crystallised and chemically neutral. Close to characteristics of water.
- Maximum operation pressure: 6 bar (600 kPa) for Jet and 8 bar (800kPa) for Jetinox

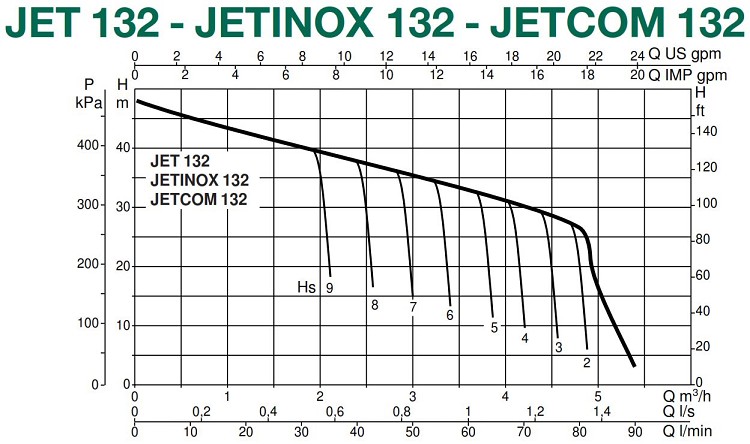

PDF download click here for technical specifications.
