DAB Jet 112M

DAB Jet 112M
DAB Jet 112M
DAB Jet 112M
€ 294,00 ex vat
€ 355,74 inc vat
1 pcs in stock
Product ID 01400030
Brand Dab
Voltage 1x230V
Frequency 50 Hz
Characteristics Zelfaanzuigend
Maximum head in mwc 54
Maximum flow in L/min 60
Article number factory 102660060
Type / Model Jet
Power in Kw 1,00

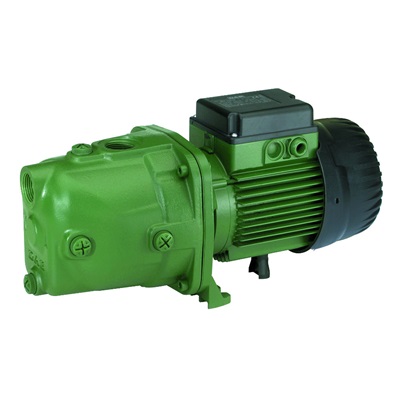

Self-priming centrifugal pump with excellent suction capacity even when there are air bubbles. Particularly suitable for water supply in domestic installations, smallscale agriculture, gardening and wherever self- priming operation is necessary.

Jet: cast iron pump body.
Jetinox: stainless steel pump body.

M models are single-phase versions on 220 volt. The T models are three-phase versions and need a correctly set motor protection according to current safety norms.

  • Protection class: IP 44
  • Protection level therminal board: IP55 (for single-phase)
  • Isolation class: F
  • Built according to IEC-norms 61-69 (EN 60335-2-41)
  • Temperature reach liquids: - 10°C till + 35°C for domestic use and - 10°C till + 40°C for other use
  • Pumped liquid: clean, free from solids or abrasive substances, not viscous, not aggressive, not crystallised and chemically neutral. Close to characteristics of water.
  • Maximum operation pressure: 6 bar (600 kPa) for Jet and 8 bar (800kPa) for Jetinox
Stock 1 pieces
