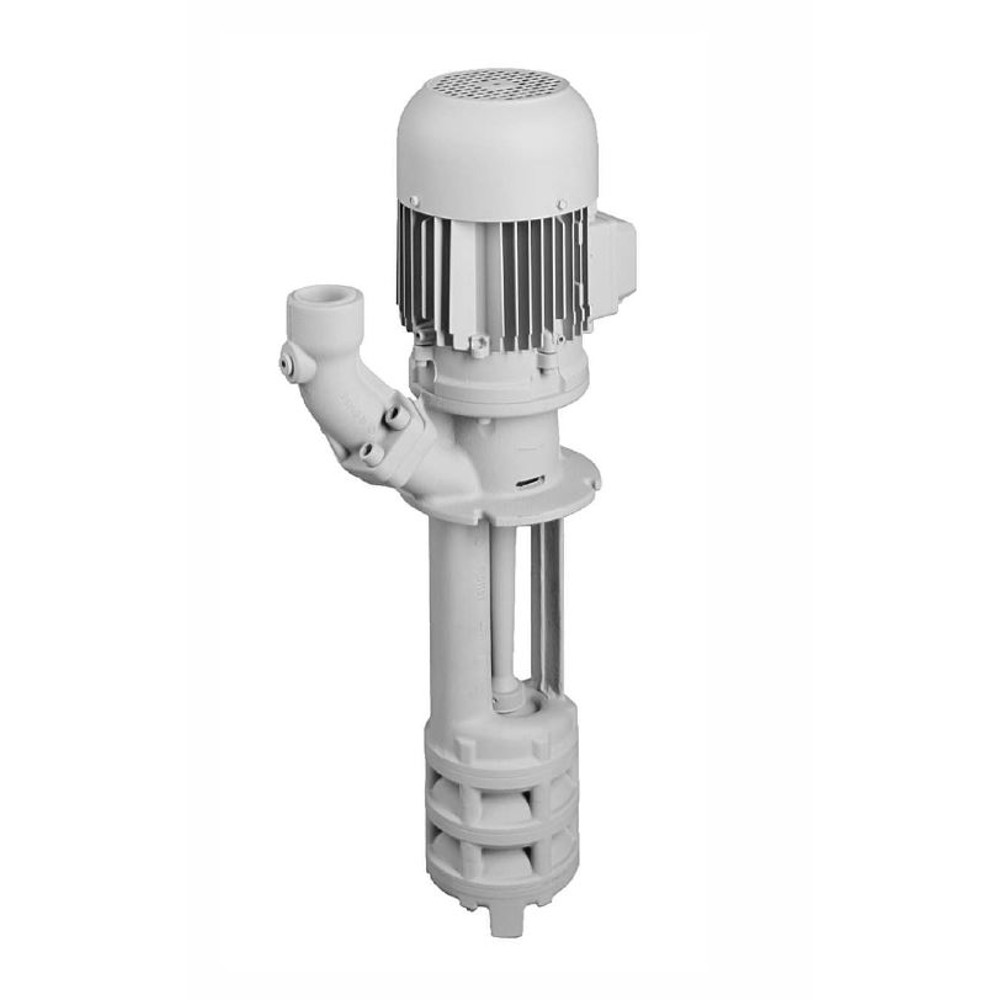

Brinkmann STA403/450
| Art ID | 00500017 |
|---|---|
| Description | Brinkmann STA403/450 |
| In stock | |
| Delivery time | 7 business days |
| Price excluding taxes | €2.420,60 |
| Price incl. VAT | €2.928,93 |
€2.928,93
(Incl. btw)
Amount
Out of stock, please contact us. Delivery time 5 days.
Characteristics
| Article number | 00500017 |
|---|---|
| Merk | Brinkmann |
| Voltage | 3x400V |
| Frequentie | 60 Hz |
| Max. opvoerhoogte in MWK | 95 |
| Max. debiet in L/min | 460 |
| Type / Model | STA |
| Aansluiting in inch | 1½ |
| Stroomsterkte | 4,1A |
| Vermogen in kilowatt | 1,70 |
Description
Pump with the impeller fitted on the driving shaft extension. It is mounted on top of the container, the pump extension being immersed in the coolant. The maximum coolant level must stay a few mm/inches below the mounting flange. The STA serie offers a (SAE) flange with pressure gauge connection port. The flange can be rotated for either horizontal or vertical pipe connections. Immersion depth is 450 mm.
The pump can be used for coolants and cooling/cutting oils applications.
Materials:
Pump body: cast iron
Cover: cast iron
Impellers: brass
Shaft: steel
PDF download click here for technical specifications.
