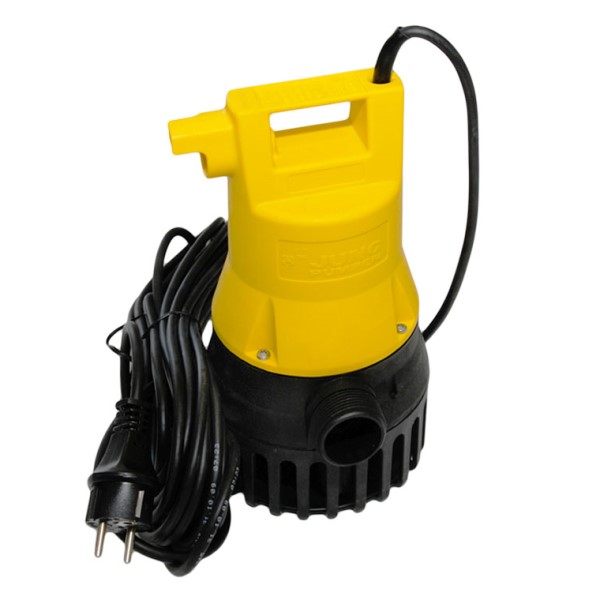

Jung drainage pump U3K
Jung drainage pump U3K

Jung drainage pump U3K

Art ID03000045
DescriptionJung drainage pump U3K
In stock 1
Delivery time Directly available
Price excluding taxes€401,08
Price incl. VAT€485,31
€485,31
(Incl. btw)
Amount

 Ordered before 2:00 PM on workdays, shipped the same day!

Characteristics

Article number03000045
MerkPentair
Voltage1x230V
Frequentie50 Hz
Max. opvoerhoogte in MWK6
Max. debiet in m3/uur6,5
Artikelnummer fabrikantJP00205
Doorlaat in mm10
Type / ModelU3K
Materiaal pompdeelPolypropyleen
Kabellengte in meters10
Vermogen in kilowatt0,20
Geleverd met vlotterNee
Materiaal waaierKunststof
Waaier typeVortex

Description

Jung U3K
Plastic submersible pump with stainless steel shaft
Motor: 0,2kW 1x230V 50Hz
Capacity: 1,5 - 6,5 m³/h @ 6 - 1 mWc
Connection: 1¼" press
Including: 10 meter cable

The U3K is an extremely versatile centrifugal submersible pump for stationary and portable use. EIP technology for safer operation, integrated flushing device for reducing deposits and integrated low level pumping for preventing flooding are only a few of the innovative features that set this pump apart.

The pump removes rain water, lightly polluted water and domestic waste water from household dishwashers and washing machines (also high temperature).

In stationary use the U3KS with automatic switching removes the water from drains in cellars, laundries or storerooms and serves as a flood protection. The guide rail system GR 32 offers all the advantages of fast and easy maintenance. Our ready-to-install collecting tanks extend the range of uses. If the sump or tank runs dry temporarily, the pump can be vented by providing a drill-hole in the spiral housing.

For mildly aggressive media such as brackish water, condensate from condensing boilers, liquid manure etc., the U 3 K (S) spezial should be used. For heavily contaminated water we recommend the waste water pumps of the US-range.

If submersible pumps are used outdoors, only a pump with 10 m cable without extension cable may be used in accordance with VDE Regulation 0100. For construction sites and garden ponds, a H07-type cable must be used.

PDF download click here for technical specifications.
