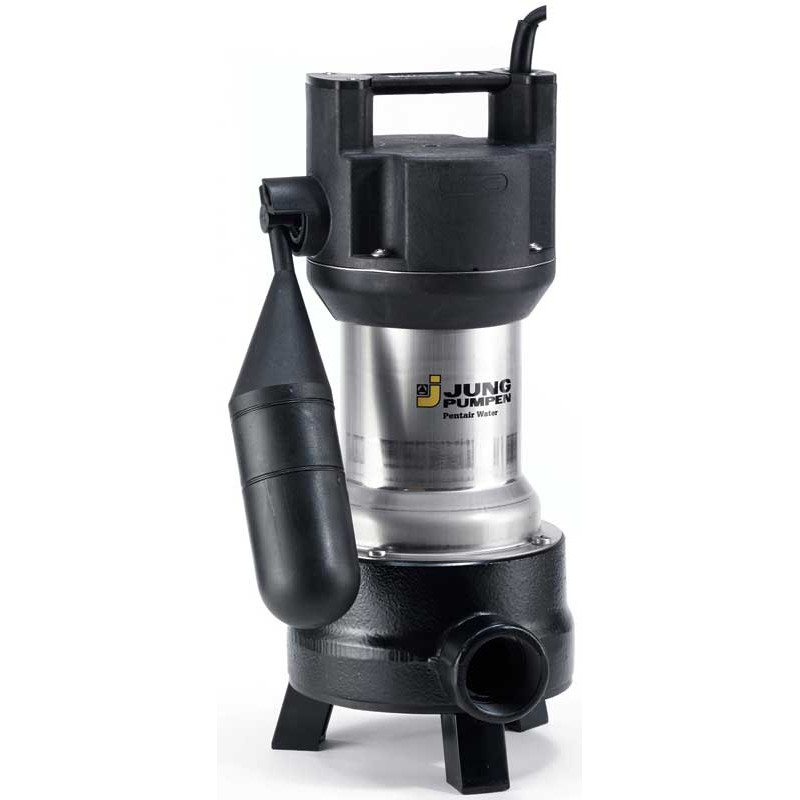

Jung submersible pump US 155 ES

Jung submersible pump US 155 ES
€ 1.815,00 ex vat
€ 2.196,15 inc vat
Out of stock, Exp. delivery in 5 days
Product ID 03000138
Brand Pentair
Voltage 1x230V
Frequency 50 Hz
Maximum head in mwc 12
Size discharge port in inch 2
Article number factory JP09389
Max particle passage size in mm 50
Type / Model US 155
Cable length in meters 10
Power in Kw 1,21
Geleverd met vlotter Ja
Materiaal waaier Kunststof
Waaier type Vortex
Jung US 155 ES
Submersible pump with floatswitch
Motor: 1,21kW 1x230V 50Hz 7,5A
Capacity: Qmax 29m³/h, Hmax 12mwk
Free passage: 50mm
Connection: IG 2” outlet

The centrifugal submersible drainage pumps US 75-155 are suitable for dealing with notably contaminated water and capable of handling solids up to 50 mm particle size. With their free passage of 50 mm, these pumps are able to pump solids and fibers quickly, reliably and
above all without blockage!

For easy removal of the pumps from deep sumps we recommend the use of our guide rail systems which provide ease of maintenance and inspection. A controllable oil chamber and wear-resistant special mechanical seal ensure a long service life. The integrated winding
thermostats protect the motor from overload.

For automatic monitoring of the oil chamber a seal leak control can be connected.

Maximum cable length is 10 m. The US 155 DS 3-phase pump with level control has a CEE-Plug with phase inverter.

The sewage pumps are tested by the German Institute for Construction Engineering and correspond to the valid construction and test principles.
Keywords: Jung, US155ES, dompelpomp, JP09389, Pentair
