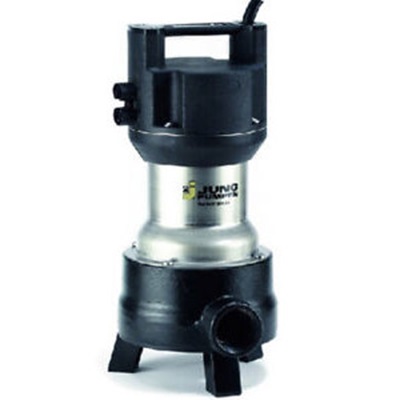

Jung submersible pump US 155 D
| Art ID | 03000133 |
|---|---|
| Description | Jung submersible pump US 155 D |
| In stock | |
| Delivery time | 5 business days |
| Price excluding taxes | €2.625,26 |
| Price incl. VAT | €3.176,56 |
€3.176,56
(Incl. btw)
Amount
Out of stock, please contact us. Delivery time 5 days.
Characteristics
| Article number | 03000133 |
|---|---|
| Merk | Pentair |
| Voltage | 3x400V |
| Frequentie | 50 Hz |
| Max. opvoerhoogte in MWK | 12 |
| Max. debiet in m3/uur | 31 |
| Artikelnummer fabrikant | JP09390 |
| Doorlaat in mm | 50 |
| Type / Model | US 155 |
| Kabellengte in meters | 10 |
| Vermogen in kilowatt | 1,41 |
| Geleverd met vlotter | Nee |
| Materiaal waaier | Kunststof |
| Waaier type | Vortex |
Description
Jung US 155 D
Submersible pump without floatswitch
Motor: 1,41kW 3x400V 50Hz 3,1A
Capacity: Qmax 31m³/h, Hmax 12mwk
Free passage: 50mm
Connection: IG 2” outlet
The centrifugal submersible drainage pumps US 75-155 are suitable for dealing with notably contaminated water and capable of handling solids up to 50 mm particle size. With their free passage of 50 mm, these pumps are able to pump solids and fibers quickly, reliably and
above all without blockage!
For easy removal of the pumps from deep sumps we recommend the use of our guide rail systems which provide ease of maintenance and inspection. A controllable oil chamber and wear-resistant special mechanical seal ensure a long service life. The integrated winding
thermostats protect the motor from overload.
For automatic monitoring of the oil chamber a seal leak control can be connected.
Maximum cable length is 10 m. The US 155 DS 3-phase pump with level control has a CEE-Plug with phase inverter.
The sewage pumps are tested by the German Institute for Construction Engineering and correspond to the valid construction and test principles.
PDF download click here for technical specifications.
