Jung submersible pump US 105 D
€ 1.994,18
ex vat
€ 2.412,96 inc vat
€ 2.412,96 inc vat
Out of stock,
Exp. delivery in 5 days
| Product ID | 03000131 |
| Brand | Pentair |
| Voltage | 3x400V |
| Frequency | 50 Hz |
| Maximum head in mwc | 11 |
| Article number factory | JP09408 |
| Max particle passage size in mm | 50 |
| Type / Model | US 105 |
| Cable length in meters | 10 |
| Power in Kw | 1,06 |
| Geleverd met vlotter | Nee |
| Materiaal waaier | Kunststof |
| Waaier type | Vortex |

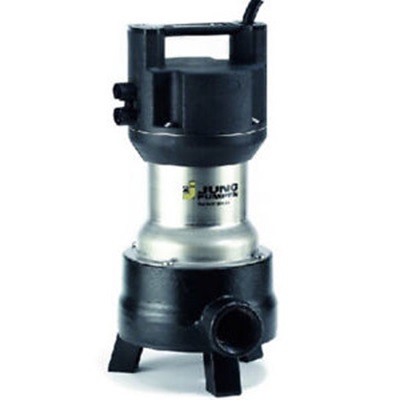

Jung US 105 D
Submersible pump without floatswitch
Motor: 1,06kW 3x400V 50Hz 2,4A
Capacity: Qmax 29m³/h, Hmax 11mwk
Free passage: 50mm
Connection: IG 2” outlet
The centrifugal submersible drainage pumps US 75-155 are suitable for dealing with notably contaminated water and capable of handling solids up to 50 mm particle size. With their free passage of 50 mm, these pumps are able to pump solids and fibers quickly, reliably and
above all without blockage!
For easy removal of the pumps from deep sumps we recommend the use of our guide rail systems which provide ease of maintenance and inspection. A controllable oil chamber and wear-resistant special mechanical seal ensure a long service life. The integrated winding
thermostats protect the motor from overload.
For automatic monitoring of the oil chamber a seal leak control can be connected.
Maximum cable length is 10 m. The US 155 DS 3-phase pump with level control has a CEE-Plug with phase inverter.
The sewage pumps are tested by the German Institute for Construction Engineering and correspond to the valid construction and test principles.
Submersible pump without floatswitch
Motor: 1,06kW 3x400V 50Hz 2,4A
Capacity: Qmax 29m³/h, Hmax 11mwk
Free passage: 50mm
Connection: IG 2” outlet
The centrifugal submersible drainage pumps US 75-155 are suitable for dealing with notably contaminated water and capable of handling solids up to 50 mm particle size. With their free passage of 50 mm, these pumps are able to pump solids and fibers quickly, reliably and
above all without blockage!
For easy removal of the pumps from deep sumps we recommend the use of our guide rail systems which provide ease of maintenance and inspection. A controllable oil chamber and wear-resistant special mechanical seal ensure a long service life. The integrated winding
thermostats protect the motor from overload.
For automatic monitoring of the oil chamber a seal leak control can be connected.
Maximum cable length is 10 m. The US 155 DS 3-phase pump with level control has a CEE-Plug with phase inverter.
The sewage pumps are tested by the German Institute for Construction Engineering and correspond to the valid construction and test principles.
Keywords: Jung, US105D, dompelpomp, JP09408, Pentair
PDF download:
click here for comprehensive technical data
