Jung MultiStream sewage pump 75/4 C5
| Product ID | 03000125 |
| Brand | Pentair |
| Voltage | 3x400V |
| Frequency | 50 Hz |
| Maximum head in mwc | 18 |
| Article number factory | JP09904 |
| Max particle passage size in mm | 100 |
| Connection | DN 100 |
| Type / Model | MultiStream |
| Material pump part | Gietijzer |
| Cable length in meters | 10 |
| Power in Kw | 5,90 |
| Materiaal waaier | Gietijzer |
| Waaier type | Kanaal |

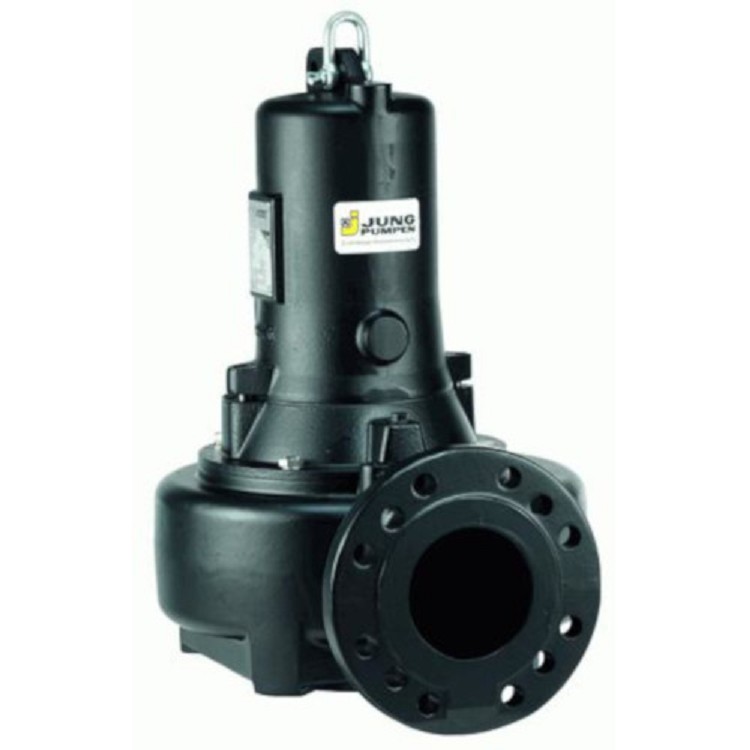

Jung MultiStream 75/4 C4
Sewage submersible pump
Motor: 5,90kW 3x400V 50Hz
Capacity: 22 - 212 m³/h @ 18 - 1 mwk
Connection: DN 100
Including: 10 meter cable
The centrifugal sumersible sewage pumps MultiStream are suitable for handling effluent or sewage in municipal and industrial pumping stations as well as in surface water drainage applications. The smaller typs are also used very successfully as portable units to deal
with emergency situations.
The sewage pumps are suitable für handling sewage water. In hazardous locations explosion-proof sewage pumps Ex have to be used.
The adjustable axial gap of the MultiStream-pump makes it possible to re-optimize the efficiency in case of abrasion by adjusting only one single screw. This can be done very cost-effective when the maintenance is carried out and the pump keeps its optimum erformance
on a long-term basis. MultiStream-pumps are recommended for: effluent which contains fibrous matter / effluent which contains solids / mixed water / raw effluent / raw sludge / rainwater.
Sewage submersible pump
Motor: 5,90kW 3x400V 50Hz
Capacity: 22 - 212 m³/h @ 18 - 1 mwk
Connection: DN 100
Including: 10 meter cable
The centrifugal sumersible sewage pumps MultiStream are suitable for handling effluent or sewage in municipal and industrial pumping stations as well as in surface water drainage applications. The smaller typs are also used very successfully as portable units to deal
with emergency situations.
The sewage pumps are suitable für handling sewage water. In hazardous locations explosion-proof sewage pumps Ex have to be used.
The adjustable axial gap of the MultiStream-pump makes it possible to re-optimize the efficiency in case of abrasion by adjusting only one single screw. This can be done very cost-effective when the maintenance is carried out and the pump keeps its optimum erformance
on a long-term basis. MultiStream-pumps are recommended for: effluent which contains fibrous matter / effluent which contains solids / mixed water / raw effluent / raw sludge / rainwater.
