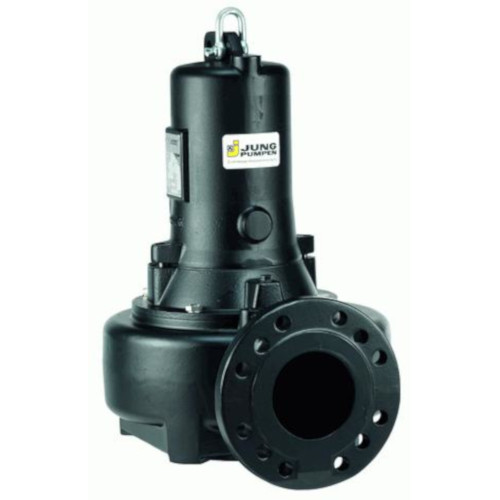

Jung MultiStream sewage pump 35/4 B4
| Art ID | 03000124 |
|---|---|
| Description | Jung MultiStream sewage pump 35/4 B4 |
| In stock | |
| Delivery time | Special order, delivery time unknown |
| Price | On request |
Amount
Out of stock, please contact us. Delivery time 5 days.
Characteristics
| Article number | 03000124 |
|---|---|
| Merk | Pentair |
| Voltage | 3x400V |
| Frequentie | 50 Hz |
| Max. opvoerhoogte in MWK | 14 |
| Max. debiet in m3/uur | 132 |
| Artikelnummer fabrikant | JP09647 |
| Doorlaat in mm | 70 |
| Aansluiting | DN 80 |
| Type / Model | MultiStream |
| Materiaal pompdeel | Gietijzer |
| Kabellengte in meters | 10 |
| Vermogen in kilowatt | 2,65 |
| Materiaal waaier | Gietijzer |
| Waaier type | Kanaal |
Description
Jung MultiStream 35/4 B4
Sewage submersible pump
Motor: 2,65kW 3x400V 50Hz
Capacity: 10 - 132 m³/h @ 14 - 1 mwk
Connection: DN 80
Including: 10 meter cable
The centrifugal sumersible sewage pumps MultiStream are suitable for handling effluent or sewage in municipal and industrial pumping stations as well as in surface water drainage applications. The smaller typs are also used very successfully as portable units to deal
with emergency situations.
The sewage pumps are suitable für handling sewage water. In hazardous locations explosion-proof sewage pumps Ex have to be used.
The adjustable axial gap of the MultiStream-pump makes it possible to re-optimize the efficiency in case of abrasion by adjusting only one single screw. This can be done very cost-effective when the maintenance is carried out and the pump keeps its optimum erformance
on a long-term basis. MultiStream-pumps are recommended for: effluent which contains fibrous matter / effluent which contains solids / mixed water / raw effluent / raw sludge / rainwater.
PDF download click here for technical specifications.
