Jung sewage pump MultiCut 25/2 ME
| Product ID | 03000117 |
| Brand | Pentair |
| Voltage | 1x230V |
| Frequency | 50 Hz |
| Maximum head in mwc | 21 |
| Article number factory | JP09843 |
| Connection | DN 32 |
| Type / Model | Multicut |
| Material pump part | Gietijzer |
| Cable length in meters | 10 |
| Power in Kw | 2,04 |
| Geleverd met vlotter | Nee |
| Materiaal waaier | Gietijzer |
| Waaier type | Vortex |

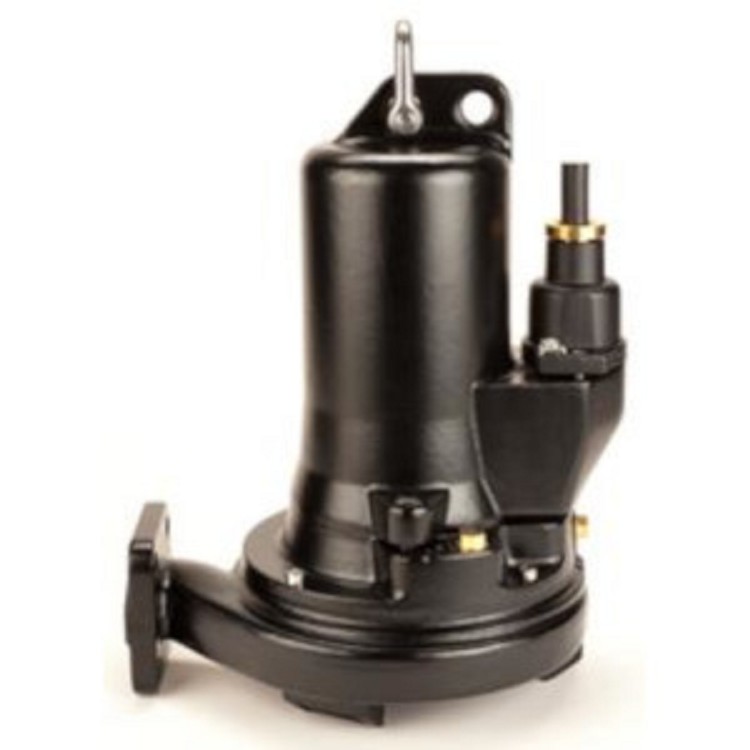

Jung MultiCut 25/2 ME
Sewage pump with cutting system
Motor: 2,04kW 1x230V 50Hz
Capacity: 5 - 17 m³/h @ 21 - 6 mwk
Connection: DN 32
Including: 4 meter cable
Centrifugal submersible sewage pumps fitted with the MultiCut cutting system are used as stationary appliances for backpressure protection of detached houses. They are suitable for pumping domestic wastewater with the usual additions (as specified in German
standard DIN 1986, Part 3).
For pumping from ducts which are connected to the public sewer system, explosion-proof submersible pumps of have to be used. On account of the upstream cutting system, the pressurised line as from DN 32 - as from DN 80 minimum without cutting system - may
be routed parallel to the terrain.
Operating conditions up to a temperature of the material to be transported of 40° Celsius Submerged motor: Continuous operation (S1)
Emerged motor: Intermittent operation (S3) (e.g. 35% = 3.5 min. operation, 6.5 min. break)
The unique MultiCut cutting system ensures a maximum of operational safety at outstanding delivery characteristics. Fitted with a cutter plate made of hardened stainless steel and a threebladed knife, it disintegrates coarse additions in the wastewater with more than 62,000 cutting processes per minute before they can get into the pump hydraulics. Solids which cannot be transported are rejected outside of the pump by the cutting rotor as the cutting system is located upstream from the pump hydraulics. Specifically arranged grooves on the cutter plate ensure additional safety as the cutting unit is permanently cleaned automatically during the delivery.
Sewage pump with cutting system
Motor: 2,04kW 1x230V 50Hz
Capacity: 5 - 17 m³/h @ 21 - 6 mwk
Connection: DN 32
Including: 4 meter cable
Centrifugal submersible sewage pumps fitted with the MultiCut cutting system are used as stationary appliances for backpressure protection of detached houses. They are suitable for pumping domestic wastewater with the usual additions (as specified in German
standard DIN 1986, Part 3).
For pumping from ducts which are connected to the public sewer system, explosion-proof submersible pumps of have to be used. On account of the upstream cutting system, the pressurised line as from DN 32 - as from DN 80 minimum without cutting system - may
be routed parallel to the terrain.
Operating conditions up to a temperature of the material to be transported of 40° Celsius Submerged motor: Continuous operation (S1)
Emerged motor: Intermittent operation (S3) (e.g. 35% = 3.5 min. operation, 6.5 min. break)
The unique MultiCut cutting system ensures a maximum of operational safety at outstanding delivery characteristics. Fitted with a cutter plate made of hardened stainless steel and a threebladed knife, it disintegrates coarse additions in the wastewater with more than 62,000 cutting processes per minute before they can get into the pump hydraulics. Solids which cannot be transported are rejected outside of the pump by the cutting rotor as the cutting system is located upstream from the pump hydraulics. Specifically arranged grooves on the cutter plate ensure additional safety as the cutting unit is permanently cleaned automatically during the delivery.
Keywords: Jung, multicut, afvalpomp, JP09843, pentair
PDF download:
click here for comprehensive technical data
| Stock | 0 pieces |
