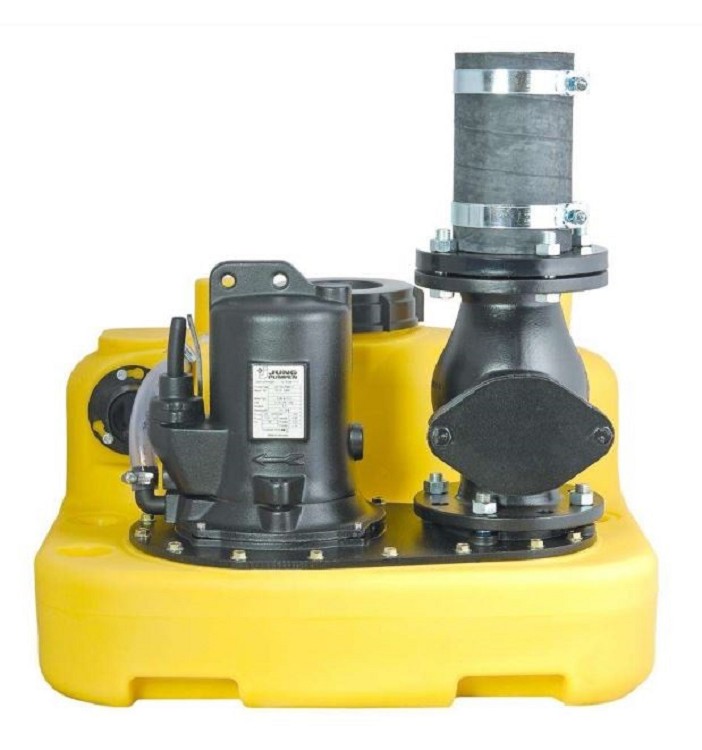

Jung sewage lifting system Compli 400 E + non return valve
| Art ID | 03000052 |
|---|---|
| Description | Jung sewage lifting system Compli 400 E + non return valve |
| In stock | 1 |
| Delivery time | Directly available |
| Price excluding taxes | €3.228,00 |
| Price incl. VAT | €3.905,88 |
€3.905,88
(Incl. btw)
Amount
Ordered before 2:00 PM on workdays, shipped the same day!
Characteristics
| Article number | 03000052 |
|---|---|
| Merk | Pentair |
| Voltage | 1x230V |
| Frequentie | 50 Hz |
| Max. opvoerhoogte in MWK | 6 |
| Max. debiet in m3/uur | 48 |
| Artikelnummer fabrikant | JP09324 |
| Doorlaat in mm | 70 |
| Aansluiting | DN 80 |
| Type / Model | Compli 400 |
| Materiaal pompdeel | Gietijzer |
| Kabellengte in meters | 4 |
| Vermogen in kilowatt | 1,10 |
| Geleverd met vlotter | Ja |
| Materiaal waaier | Kunststof |
| Waaier type | Vortex |
Description
Jung Compli 40 E + non-return valve mounted
Sewage lifting station
Motor: 1,10kW 1x230V 50Hz
Capacity: 13-48m³/h @ 6-1mWk
Free passage: 70mm
Connection: DN80
Including: 4 meter cable
This sewage lifting station for detached houses is fitted for versatile fields of application. During the design work, special attention was given to easy handling (recessed grips), space-saving erection and uncomplicated installation.
The submergible unit is permitted for general use in areas subject to flooding. The control unit has to be fitted in a well ventilated flood-proof room.
The PE tank has freely accessible drains, a top-mounted cleaning opening and a height-adjustable clamp-type inlet flange which can be adjusted on site to an inlet height of between 180 and 250 mm depending on the drainage situation.
Other horizontally and vertically arranged additional inlets increase the connection and drainage options. The vortex impeller of the pump offers the safety you can rely on.
PDF download click here for technical specifications.
