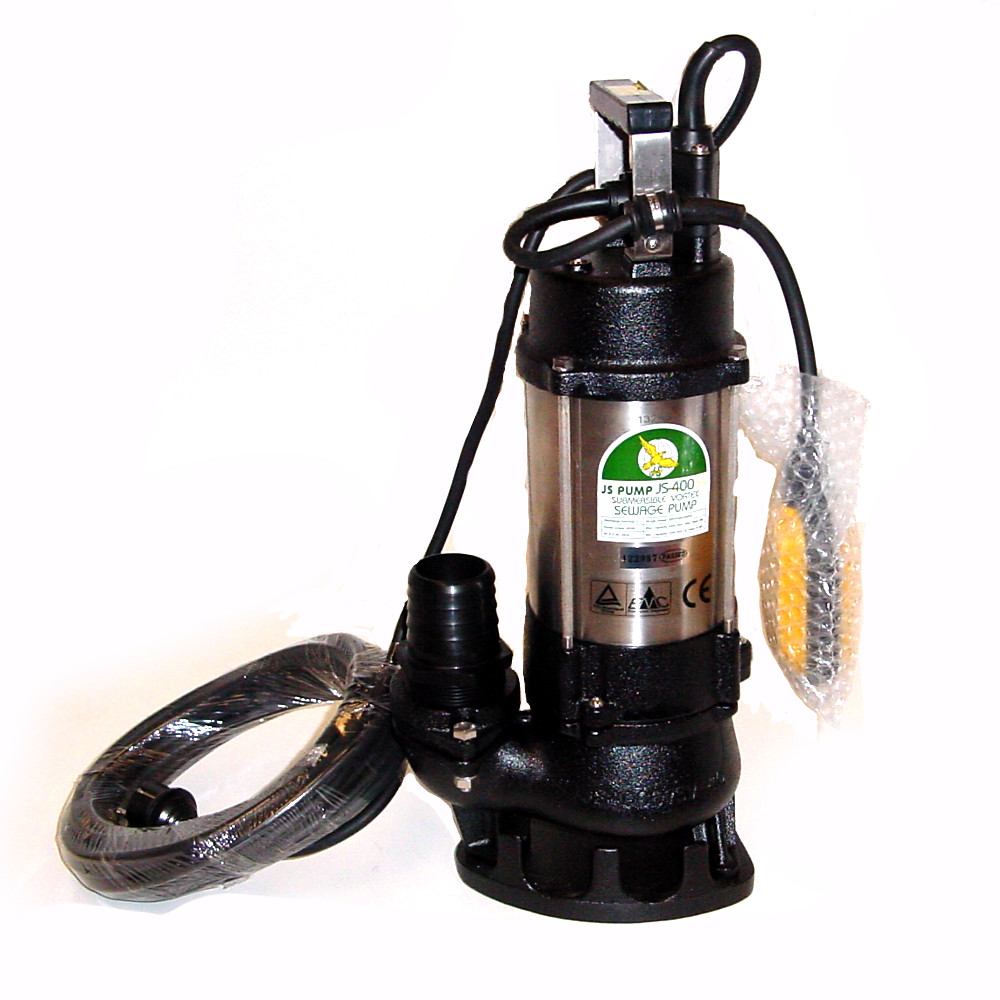

JS Robu JS400 SVA
| Art ID | 03400002 |
|---|---|
| Description | JS Robu JS400 SVA |
| In stock | |
| Delivery time | 5 business days |
| Price excluding taxes | €469,00 |
| Price incl. VAT | €567,49 |
€567,49
(Incl. btw)
Amount
Out of stock, please contact us. Delivery time 5 days.
Characteristics
| Article number | 03400002 |
|---|---|
| Merk | JS Robu |
| Voltage | 1x230V |
| Hoogte in mm | 460 |
| Frequentie | 50 Hz |
| Max. opvoerhoogte in MWK | 8 |
| Max. debiet in L/min | 225 |
| Max. debiet in m3/uur | 13,5 |
| Artikelnummer fabrikant | 012-410 |
| Doorlaat in mm | 36 |
| Type / Model | JS SV |
| Aansluiting in inch | 2 |
| Materiaal pompdeel | Gietijzer |
| Kabellengte in meters | 10 |
| Vermogen in kilowatt | 0,40 |
| Geleverd met vlotter | Ja |
| Breedte in mm | 145 |
| Lengte in mm | 215 |
| Materiaal waaier | Gietijzer |
| Waaier type | Vortex |
Description
JS-SV series are submersible sewage vortex impeller pumps allowing soft solids to be passed through the pump body to waste (JS400 36 mm solids handling). Available as standard as free standing or can be guide rail mounted.
Cast iron pump body, impeller, lower motor bearing/ seal housing and motor top cover.
Stainless steel shaft and motor casing.
Twin mechanical seals, carbon ceramic and silicon carbide in a lubricated chamber.
The pump is extremly suitable to pump sewage water. The float switch option can turn the pump on and off automatically.
This model is equipped with floating switch and recessed impeller.
PDF download click here for technical specifications.
