JS Robu JS250 SV without float switch
| Art ID | 03400014 |
|---|---|
| Description | JS Robu JS250 SV without float switch |
| In stock | |
| Delivery time | 5 business days |
| Price excluding taxes | €373,00 |
| Price incl. VAT | €451,33 |
€451,33
(Incl. btw)
Amount
Out of stock, please contact us. Delivery time 5 days.
Characteristics
| Article number | 03400014 |
|---|---|
| Merk | JS Robu |
| Voltage | 1x230V |
| Hoogte in mm | 370 |
| Frequentie | 50 Hz |

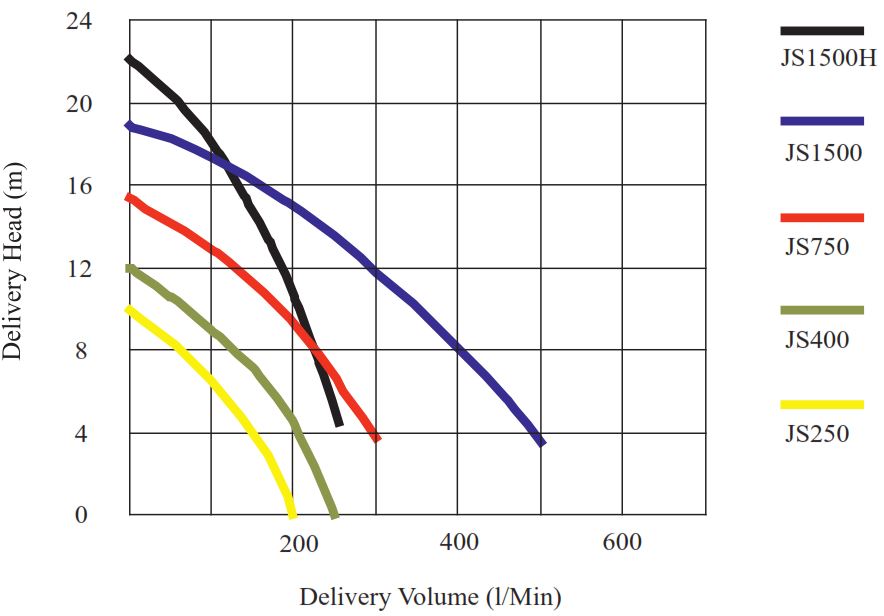

| Max. opvoerhoogte in MWK | 10 |
| Max. debiet in m3/uur | 12 |
| Artikelnummer fabrikant | 011-200 |
| Type / Model | JS SV |
| Aansluiting in inch | 1½ |
| Kabellengte in meters | 10 |
| Vermogen in kilowatt | 0,30 |
| Breedte in mm | 150 |
| Lengte in mm | 220 |
| Materiaal waaier | Gietijzer |
| Waaier type | Vortex |
Description

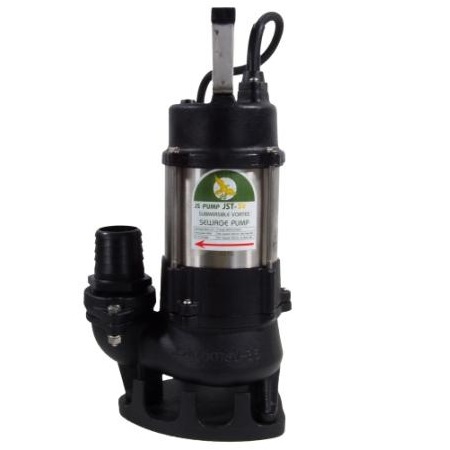

JS-SV series are submersible sewage vortex impeller pumps allowing soft solids to be passed through the pump body to waste. Available as standard as free standing or can be guide rail mounted.
Cast iron pump body, impeller, lower motor bearing/ seal housing and motor top cover.
Stainless steel shaft and motor casing.
Twin mechanical seals, carbon ceramic and silicon carbide in a lubricated chamber.
The pump is extremly suitable to pump sewage water. The float switch option can turn the pump on and off automatically.
This model is equipped with floating switch and recessed impeller.
PDF download click here for technical specifications.
