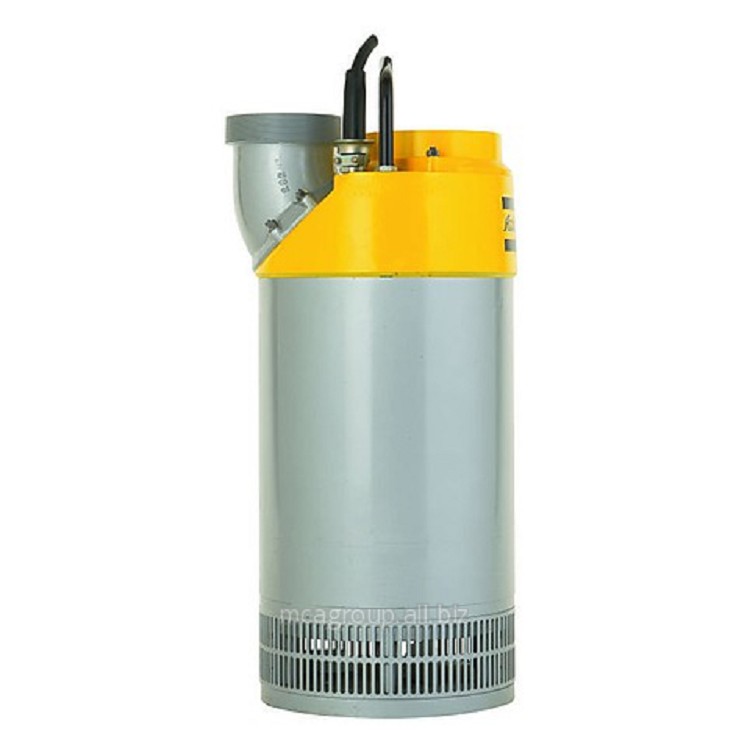

Atlas Copco Weda 70 High head DOL start
| Product ID | 09100014 |
| Brand | Weda |
| Voltage | 3x400V |
| Maximum head in mwc | 65 |
| Max particle passage size in mm | 7 |
| Type / Model | 70 |
| Power in Kw | 11,8 |
Atlas Copco Weda 70 High head DOL start
Electric submersible pump
Motor: 11,8kW 400V 25A
Capacity: Qmax. 95 m³/h | Hmax. 65 m
Free passage: 7mm
Connection: 4" discharge
De Weda + series includes all the features that customers can expect from existing. Advantages of new functions that have been developed ensure high efficiency, simplified maintenance and increased capacity. All models include rotation control and phase failure protection. This ensures that the pump stops when there is a phase failure and prevents the rotor from turning the opposite direction.
Electric submersible pump
Motor: 11,8kW 400V 25A
Capacity: Qmax. 95 m³/h | Hmax. 65 m
Free passage: 7mm
Connection: 4" discharge
De Weda + series includes all the features that customers can expect from existing. Advantages of new functions that have been developed ensure high efficiency, simplified maintenance and increased capacity. All models include rotation control and phase failure protection. This ensures that the pump stops when there is a phase failure and prevents the rotor from turning the opposite direction.
Keywords: Atlas Copco, Weda, 70, High head, 09100014
PDF download:
click here for comprehensive technical data
| Stock | 0 pieces |
