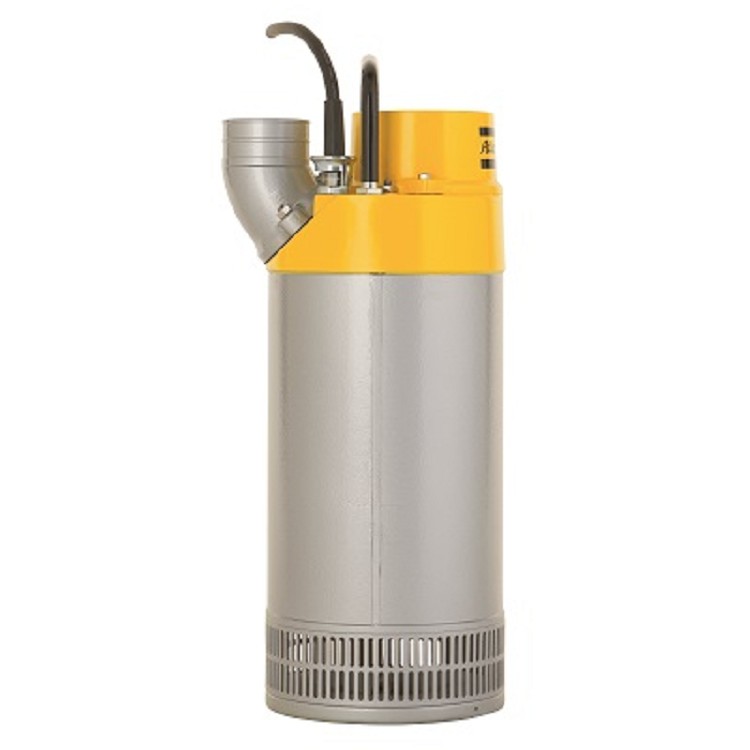

Atlas Copco Weda 50+ High head with float switch
| Product ID | 09100032 |
| Brand | Weda |
| Voltage | 3x400V |
| Maximum head in mwc | 39 |
| Max particle passage size in mm | 8 |
| Type / Model | 50+ |
| Power in Kw | 5,6 |
| Geleverd met vlotter | Ja |
Atlas Copco Weda 50+ High head with float switch
Electric submersible pump
Motor: 5,6kW 400V 11,1A
Capacity: Qmax. 72 m³/h | Hmax. 39 m
Free passage: 8mm
Connection: 3" discharge
De Weda + series includes all the features that customers can expect from existing. Advantages of new functions that have been developed ensure high efficiency, simplified maintenance and increased capacity. All models include rotation control and phase failure protection. This ensures that the pump stops when there is a phase failure and prevents the rotor from turning the opposite direction.
Electric submersible pump
Motor: 5,6kW 400V 11,1A
Capacity: Qmax. 72 m³/h | Hmax. 39 m
Free passage: 8mm
Connection: 3" discharge
De Weda + series includes all the features that customers can expect from existing. Advantages of new functions that have been developed ensure high efficiency, simplified maintenance and increased capacity. All models include rotation control and phase failure protection. This ensures that the pump stops when there is a phase failure and prevents the rotor from turning the opposite direction.
Keywords: Atlas Copco, Weda, 50+, High head, 09100032
PDF download:
click here for comprehensive technical data
