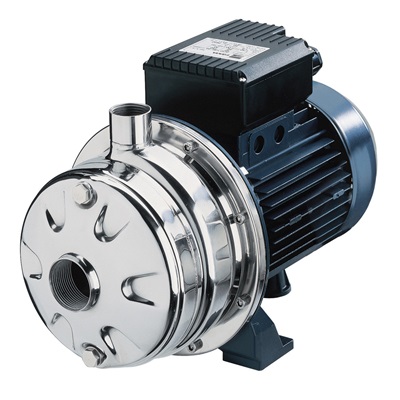

Ebara 2CDX 200/30 - 3x400V - 50Hz
| Art ID | 00900133 |
|---|---|
| Description | Ebara 2CDX 200/30 - 3x400V - 50Hz |
| In stock | |
| Delivery time | 3 business days |
| Price excluding taxes | €1.507,60 |
| Price incl. VAT | €1.824,20 |
€1.824,20
(Incl. btw)
Amount
Out of stock, please contact us. Delivery time 5 days.
Characteristics
| Article number | 00900133 |
|---|---|
| Merk | Ebara |
| Voltage | 3x400V |
| Frequentie | 50 Hz |
| Max. opvoerhoogte in MWK | 52 |
| Max. opvoerhoogte in bar | 5,2 |
| Max. debiet in m3/uur | 12,6 |
| Type / Model | 2CDX |
| Materiaal pompdeel | RVS304 |
| Vermogen in kilowatt | 2,2 |
| Materiaal waaier | RVS |
| Waaier type | Gesloten |
Description
Dual impeller centrifugal electric pumps with hydraulic parts in AISI 304 and AISI 316 for next applications:
domestic pressure boosting, small-scale garden irrigation, washing, treating water, cooling towers and pumping clean water in general.
Technical details:
- sturdy structure
- small dimensions
Pump technical data:
- maximum working pressure: 8 bar
- maxim temperature of the liquid:
- 5°C ÷ +60°C 2CDX(L) for E, Q1AEGG, VAEGG, U3U3EGG, Q1U3EGG and U3CEGG versions
- 5°C ÷ +110° for H-HS-HW-HSW versions
- G1½ suction connection for 2CDX(L) 200, G1¼ for the rest of the range
- G1 discharge connection

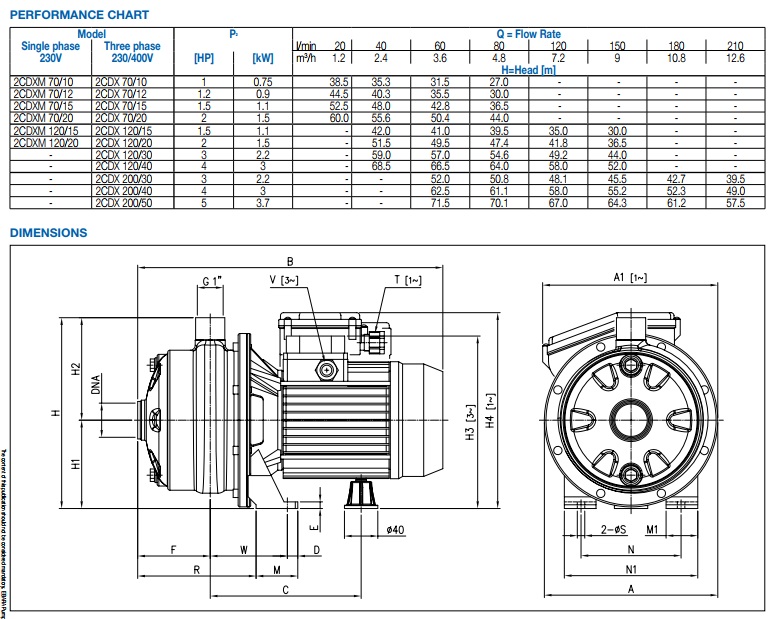

PDF download click here for technical specifications.
