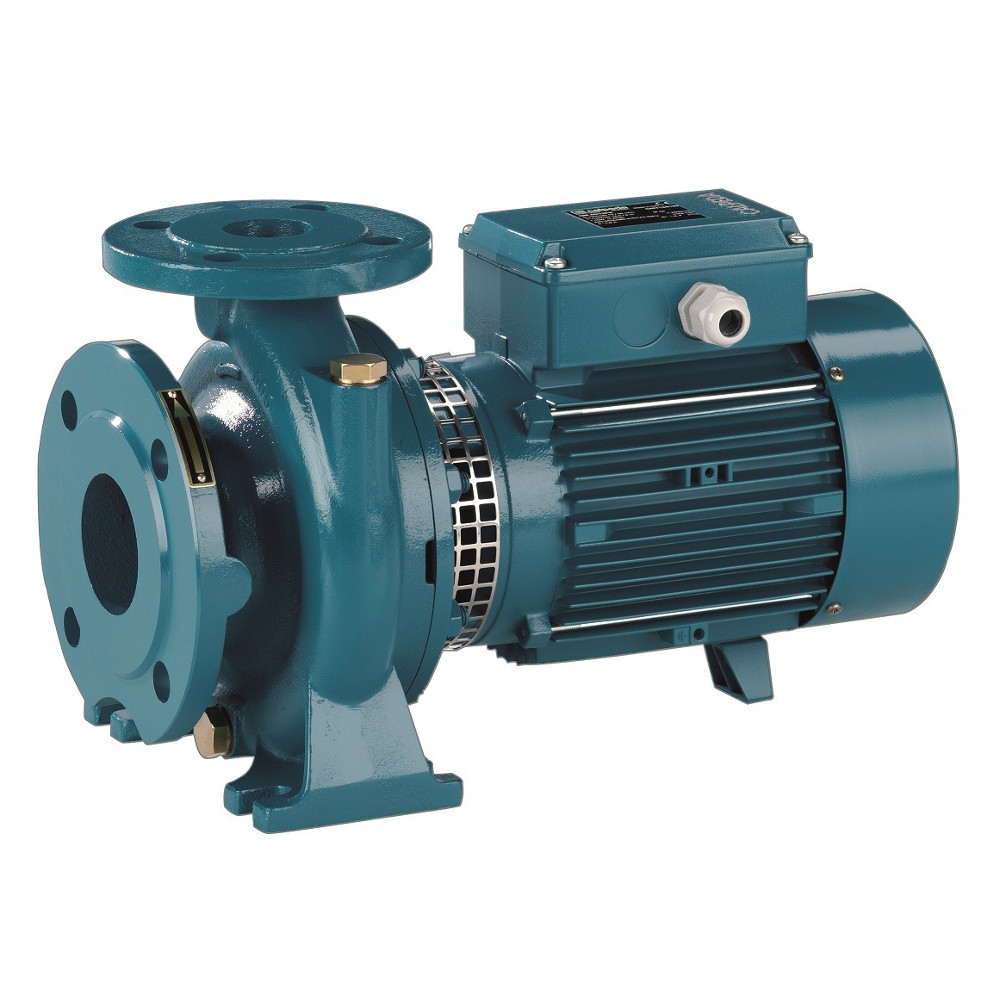

Calpeda NM 40/16A/B 4 kW
| Art ID | 01600001 |
|---|---|
| Description | Calpeda NM 40/16A/B 4 kW |
| In stock | |
| Delivery time | 3 business days |
| Price excluding taxes | €1.406,82 |
| Price incl. VAT | €1.702,25 |
€1.702,25
(Incl. btw)
Amount
Out of stock, please contact us. Delivery time 5 days.
Characteristics
| Article number | 01600001 |
|---|---|
| Merk | Calpeda |
| Voltage | 3x400V |
| Frequentie | 50 Hz |
| Max. opvoerhoogte in MWK | 37 |
| Max. debiet in m3/uur | 48 |
| Capaciteit in m3/h bij 3 bar | 35 |
| Aansluiting | Zuig DN65 Pers DN40 |
| Type / Model | NM |
| Materiaal pompdeel | Gietijzer |
| Stroomsterkte | 9,6 |
| Vermogen in kilowatt | 4,00 |
| Max. druk in bar | 10 |
| Materiaal waaier | Gietijzer |
| Waaier type | Gesloten |
Description
High-quality industrial monoblock pump for intensive (continuous) use. Single-impeller type.
This close coupled centrifugal pump is equipped with threaded ports and is conform IE2 norms.
The pump is for example suitable for: water (supply), heating and cooling systems, fire fighting applications, and irrigation.
Materials:
Pump case of cast iron.
Brass (P-Cu Zn 40Pb 2UNI 5705) impeller.
Cr steel (AISI 430) Shaft.
Carbon-Ceramic-NBR mechanical seal.
PDF download click here for technical specifications.
