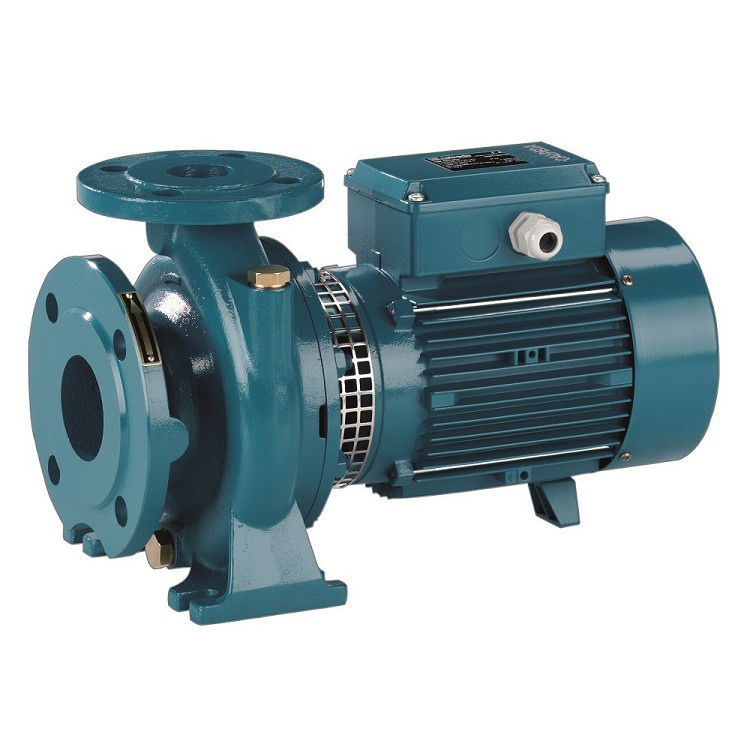

Calpeda NM 40/12A/B 2,2kW
€ 981,90
ex vat
€ 1.188,10 inc vat
€ 1.188,10 inc vat
Out of stock,
Exp. delivery in 3 days
| Product ID | 01600065 |
| Brand | Calpeda |
| Voltage | 3x400V |
| Frequency | 50 Hz |
| Maximum head in mwc | 22 |
| Connection | Zuig DN65 Pers DN40 |
| Type / Model | NM |
| Material pump part | Gietijzer |
| Power in Kw | 2,2 |
| Materiaal waaier | Gietijzer |
| Waaier type | Gesloten |
High-quality industrial monoblock pump for intensive (continuous) use. Single-impeller type.
This close coupled centrifugal pump is equipped with threaded ports and is conform IE2 norms.
The pump is for example suitable for: water (supply), heating and cooling systems, fire fighting applications, and irrigation.
Materials:
Pump case of cast iron.
Brass (P-Cu Zn 40Pb 2UNI 5705) impeller.
Cr steel (AISI 430) Shaft.
Carbon-Ceramic-NBR mechanical seal.
This close coupled centrifugal pump is equipped with threaded ports and is conform IE2 norms.
The pump is for example suitable for: water (supply), heating and cooling systems, fire fighting applications, and irrigation.
Materials:
Pump case of cast iron.
Brass (P-Cu Zn 40Pb 2UNI 5705) impeller.
Cr steel (AISI 430) Shaft.
Carbon-Ceramic-NBR mechanical seal.
Keywords: Centrifugaalpomp, monoblock, waternorm
PDF download:
click here for comprehensive technical data
| Stock | 0 pieces |
