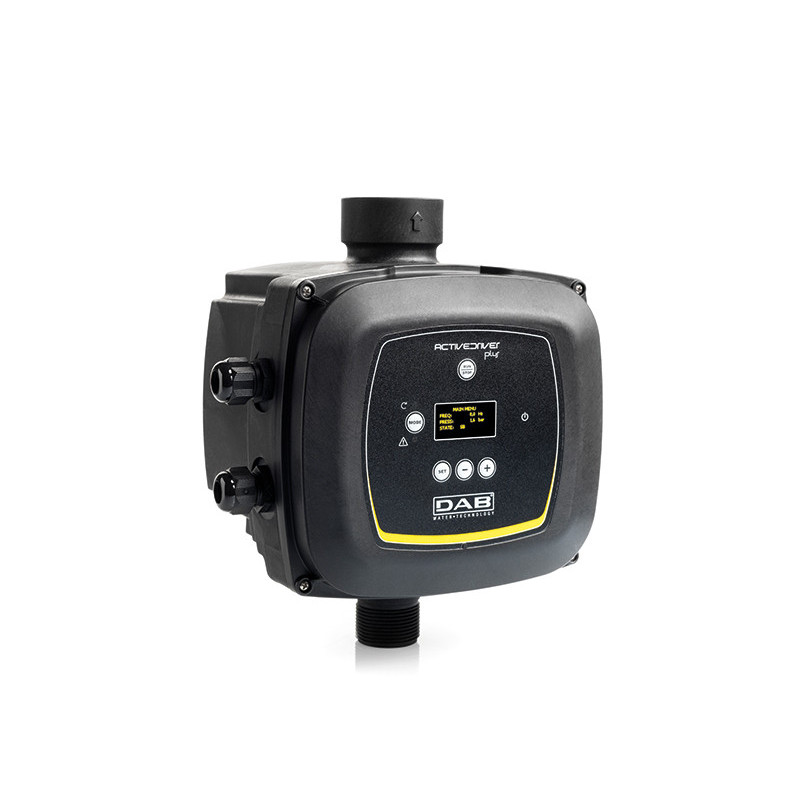

Dab Active Driver PLUS M/T 1.0
| Art ID | 01450017 |
|---|---|
| Description | Dab Active Driver PLUS M/T 1.0 |
| In stock | |
| Delivery time | 3 business days |
| Price excluding taxes | €1.109,00 |
| Price incl. VAT | €1.341,89 |
€1.341,89
(Incl. btw)
Amount
Out of stock, please contact us. Delivery time 5 days.
Characteristics
| Article number | 01450017 |
|---|---|
| Merk | Dab |
| Artikelnummer fabrikant | 60169777 109640640 |
| Ingangspanning | 1x230V |
| Uitgangspanning | 3x230V |
| Type / Model | Active driver PLUS |
| Vermogen in kilowatt | 1,00 |
| Max. druk in bar | 1-9 instelbaar |
| Max. Uitgang stroom in A | 4,70 |
Description
Dab Active Driver PLUS M/T 1.0
Max. power 1,0 kW
Max. current 4,7A
Imput voltage 1x230V, Output voltage 3x230V
Adjustment: 1 - 9 bar
The Dab Active Driver PLUS M/T 1.0 60169777 is a replacement for the Dab Active Driver M/T 1.0 109640640
The Active Driver PLUS is a completely integrated pump control system with speed control, pressure sensor and flow sensor in one module. The system ensures constant pressure, also at varying water consumption.
The Active Driver with built-in EMC-filter is equipped with an easy to use display, where all parameters can be seen and adjusted.
Its system is equipped with a protection system, which signals operation defaults and can stop the pump dependent on the nature of the default.
Benefits for the use of this system:
- Comfort increase
- Quiet working
- Compact
- Energy saving (by means of frequency control)
- Prevents water hammer
- Longer life time of the pump
- Easy to install
- Dry-running pump (automatic restart)
- Overcharing of motor (ampèrometris)
- Overheating of electronics
- Deviations in power supply voltage
With exception of type Active Driver PLUS M/M 1.1, the Active Drivers can be connected for cooperation in a multi-pump system.
PDF download click here for technical specifications.
