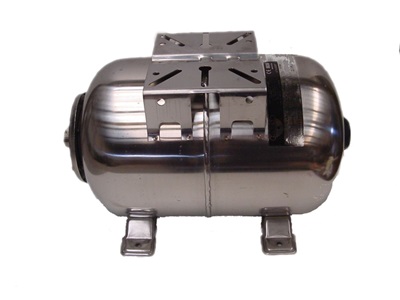

Zilmet Ultra Inox Pro 60 horizontal

Characteristics

Description

ULTRA INOX-PRO
Expansion vessel for portable water, pumps and booster sets.
Capacity: from 24 - 100 liters.

Advantages
The usable capacity of these membrane pressure tanks is superior to that of a normal tank. Less footprint at equal water yield, minimum pump starts and saving in energy consumption. The wide range (vertical and horizontal) makes Zilmet pressure tanks suitable for many applications. The tank is supplied already tested and certified by our factory according to the European Directive 97/23/EC. Maximum durability of the membrane is assured as the membrane cannot bend or rub against the plate, as it is fixed at both ends of
the tank.

Technical features
The use of stainless steel with a membrane suitable for cold water, hot water and alimentary purposes are the main features of this range of vessels. Our range of stainless steel expansion vessels is equipped with a non toxic membrane suitable for contact with drinking water according to the British WRAS/WRc and French ACS regulations. The high quality of materials, efficient manufacturing procedures and continuous quality control, these stainless steel expansion vessels allow long lasting operation with minimal special maintenance.

Working
When the pump starts, water enters the membrane tank as system pressure passes the pressure precharge using the available capacity of the tank (only useable water is stored). When the pressure in the chamber reaches the maximum system pressure, the pump stops working and the tank is filled to its maximum capacity. Pressure in the air side of the tank will push water into the system when there is a further requirement. The ultra inox-pro tank does not get logged with water and delivers all water possible, minimum pump starts are assured, saving energy and increasing the pump life.

PDF download click here for technical specifications.
