FAM Alpha 300/III VER 8 bar SS304L
| Art ID | 50500263 |
|---|---|
| Description | FAM Alpha 300/III VER 8 bar SS304L |
| In stock | |
| Delivery time | 24 business days |
| Price excluding taxes | €3.075,00 |
| Price incl. VAT | €3.720,75 |
€3.720,75
(Incl. btw)
Amount
Out of stock, please contact us. Delivery time 5 days.
Characteristics
| Article number | 50500263 |
|---|---|
| Merk | FAM |
| Diameter in mm | 650 |
| Hoogte in mm | 1202 |
| Uitvoering | Verticaal |
| Voordruk in bar | 2 |
| Type / Model | BABY STAR ALPHA |
| Aansluiting in inch | 1½ |
| Max. druk in bar | 8 |
| Inhoud in liters | 300 |
Description

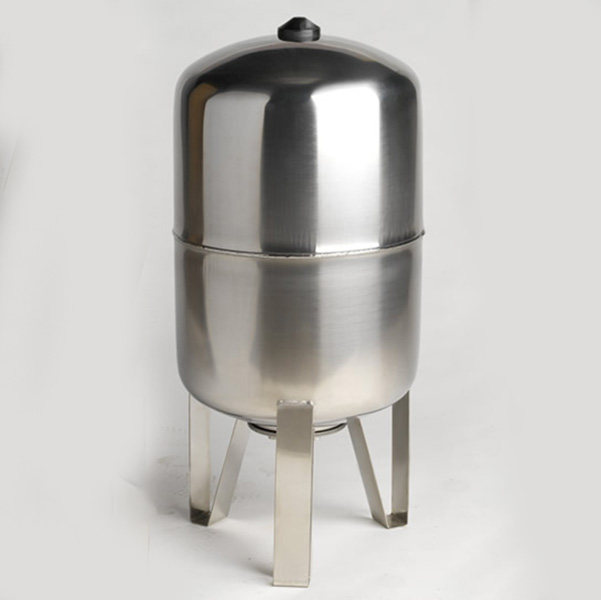

Stainless steel expansion vessel model
BABY STAR ALPHA 200/III VR SS304L 11,5 BAR
TECHNICAL CHARACTERISTICS :
- CASING MATERIAL : Stainless steel AISI 304L
- FLANGE MATERIAL : Stainless steel AISI 304L
- INLET CONNECTION : AISI 304L Ø 1½” BSP
- INTERNAL DIAPHRAGM MATERIAL : EPDM TZW / WRAS / ACS /
NSF approved
- MAX. WORKING PRESSURE : 11,5 Bar
- TESTING PRESSURE : 16,44 Bar
- PRE-CHARGING : 2 Bar
- MAX. WORKING TEMPERATURE : -10 untill +40°C
- CAPACITY : 200 Litres
- EXECUTION : Vertical with legs
- SIZES : Ø550 x H 1203 mm
- FINITURE : 2B
- OMOLOGATION : Category III mod. B+C1 According to
European Directive 2014/68/EC.
PDF download click here for technical specifications.
