FAM Alpha 50/2VR 16 bar SS316
| Art ID | 50500258 |
|---|---|
| Description | FAM Alpha 50/2VR 16 bar SS316 |
| In stock | |
| Delivery time | 24 business days |
| Price | On request |
Amount
Out of stock, please contact us. Delivery time 5 days.
Characteristics
| Article number | 50500258 |
|---|---|
| Merk | FAM |
| Diameter in mm | 350 |
| Hoogte in mm | 610 |
| Uitvoering | Verticaal |
| Voordruk in bar | 2 |
| Artikelnummer fabrikant | BABY STAR ALPHA 50/II 9.8E VR SS316 |
| Type / Model | BABY STAR ALPHA |
| Aansluiting in inch | 1 |
| Max. druk in bar | 16 |
| Inhoud in liters | 50 |
Description

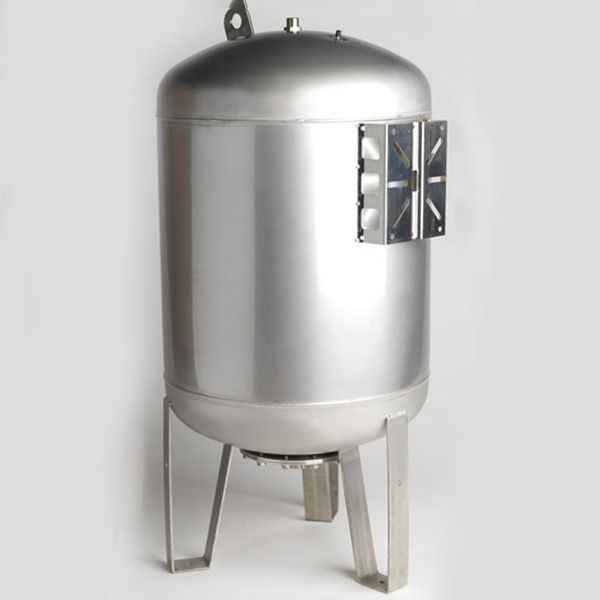

Stainless steel expansion vessel mod. BABY STAR ALPHA 50/II VR 9.8B SS316 16 BAR
TECHNICAL CHARACTERISTICS :
- CASING MATERIAL : Stainless steel AISI 316L;
- FLANGE MATERIAL : Stainless steel AISI 316L
- INLET CONNECTION : AISI 316L Ø 1” BSP;
- DIMENSIONS : Ø 350x610h
- INTERNAL DIAPHRAGM MATERIAL : BUTYL approved TZW /WRAS /ACS /NSF
- MAX. WORKING PRESSURE : 16 Bar;
- TESTING PRESSURE : 22.88 Bar;
- PRE-CHARGING : 2 Bar;
- MAX. WORKING TEMPERATURE : -10+50°C;
- CAPACITY : 50 Litres;
- EXECUTION : Vertical with Legs;
- FINITURE : 2B
- OMOLOGATION : Category II According to European
Directive 2014/68/EC.
PDF download click here for technical specifications.
