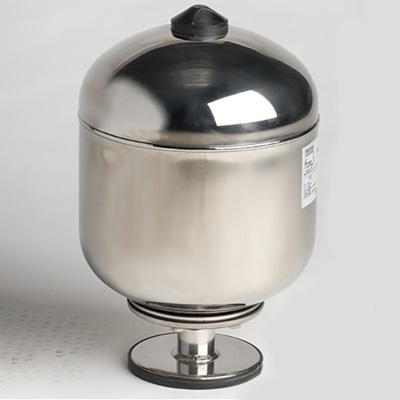

FAM BABY STAR ALPHA 8/II 16 bar SS316
| Art ID | 50500205 |
|---|---|
| Description | FAM BABY STAR ALPHA 8/II 16 bar SS316 |
| In stock | 1 |
| Delivery time | Directly available |
| Price excluding taxes | €1.139,67 |
| Price incl. VAT | €1.379,00 |
€1.379,00
(Incl. btw)
Amount
Ordered before 2:00 PM on workdays, shipped the same day!
Characteristics
| Article number | 50500205 |
|---|---|
| Merk | FAM |
| Diameter in mm | 250 |
| Hoogte in mm | 284 |
| Uitvoering | Verticaal |
| Voordruk in bar | 2 |
| Type / Model | BABY STAR ALPHA |
| Aansluiting in inch | 1 |
| Max. druk in bar | 16 |
| Inhoud in liters | 8 |
Description
FAM BABY STAR ALPHA 8/II 6.B HP16 SS316
Stainless steel SS316 expansion vessel
- CASING MATERIAL Stainless steel AISI 316L
- FLANGE MATERIAL Stainless steel AISI 316L
- INLET CONNECTION AISI 316L Ø 1” BSP
- DIAPHRAGM MATERIAL Butyl or EPDM TZW/ WRAS
ACS/ NSF approved
- MAX. WORKING PRESSURE 16 Bar
- TESTING PRESSURE 22,88 Bar
- PRE-CHARGING 2 Bar
- MAX. WORKING TEMP. 80°C
- CAPACITY 8 Litres
- EXECUTION Vertical
- FINITURE 2D
- OMOLOGATION Category II of directive
PED 97/23 EC
PDF download click here for technical specifications.
