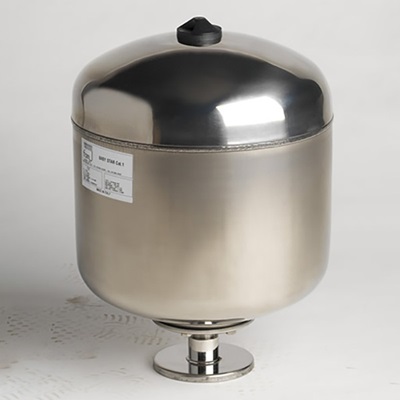

FAM BABYSTAR Alpha 12/1 14 bar 12L SS316L ½" EPDM
| Art ID | 50500214 |
|---|---|
| Description | FAM BABYSTAR Alpha 12/1 14 bar 12L SS316L ½" EPDM |
| In stock | |
| Delivery time | 24 business days |
| Price | On request |
Amount
Out of stock, please contact us. Delivery time 5 days.
Characteristics
| Article number | 50500214 |
|---|---|
| Merk | FAM |
| Uitvoering | Verticaal |
| Voordruk in bar | 2 |
| Type / Model | BABY STAR ALPHA |
| Aansluiting in inch | ½ |
| Max. druk in bar | 14 |
| Inhoud in liters | 12 |
Description
FAM Alpha 12/1 6.4B, SS316L diaphragm tank 12L vertical
- CASING MATERIAL : Stainless steel AISI 316L
- FLANGE MATERIAL : Stainless steel AISI 316L
- INLET CONNECTION : AISI 316L Ø 1/2” BSP
- INTERNAL DIAPHRAGM MATERIAL : EPDM TZW / WRAS /
ACS / NSF approved
- MAX. WORKING PRESSURE : 14 Bar
- TESTING PRESSURE : 20,02 Bar
- PRE-CHARGING : 2 Bar
- MAX. WORKING TEMPERATURE : 80°C
- CAPACITY : 12 Litres
- EXECUTION : Vertical
- FINITURE : 2D
- OMOLOGATION : Category I mod. A1 PED 2014/68/UE
PDF download click here for technical specifications.
