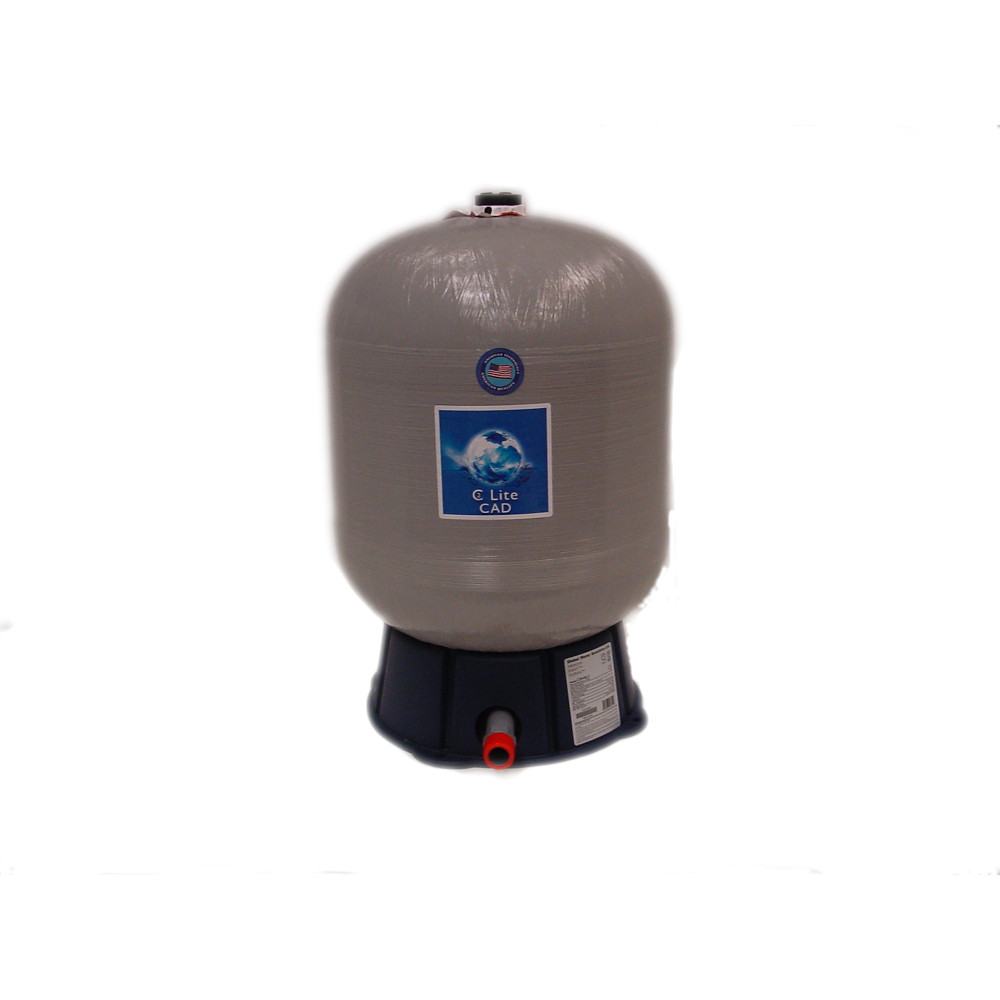

GWS C2-lite C2B-100LV
| Art ID | 50500020 |
|---|---|
| Description | GWS C2-lite C2B-100LV |
| In stock | |
| Delivery time | 3 business days |
| Price excluding taxes | €603,00 |
| Price incl. VAT | €729,63 |
€729,63
(Incl. btw)
Amount
Out of stock, please contact us. Delivery time 5 days.
Characteristics
| Article number | 50500020 |
|---|---|
| Merk | C2-Lite CAD |
| Diameter in mm | 418 |
| Hoogte in mm | 967 |
| Uitvoering | Verticaal |
| Voordruk in bar | 1,4 |
| Artikelnummer fabrikant | C2B-100LV |
| Type / Model | C2-lite |
| Aansluiting in inch | 1 |
| Max. druk in bar | 10 |
| Inhoud in liters | 100 |
Description
Suitable for a wide range of applications including pressure boosting, irrigation and various cold and hot water systems.
Characteristics
The C2-lite tanks are lightweight, completely stainless and easy to install. These tanks do not have a separate air-permeable membrane, but a patented dubbel diaphragm technology. The patented diaphragm is stronger and will not wear out. It consists of 100% butyl diaphragm with precision molded polypropylene copolymer basis for separation of water and air. The tanks are completed with durable fiberglassed and finished with epoxy.
Technical data
Maximum working pressure: 10 bars
Maximum temperature water: 60 ?C
Standard pressure:1,4 bars
5 Years of warranty!
PDF download click here for technical specifications.
