Espa Wiper 3 300T 400V
| Art ID | 00800093 |
|---|---|
| Description | Espa Wiper 3 300T 400V |
| In stock | |
| Delivery time | 21 business days |
| Price excluding taxes | €1.091,60 |
| Price incl. VAT | €1.320,84 |
€1.320,84
(Incl. btw)
Amount
Out of stock, please contact us. Delivery time 5 days.
Characteristics
| Article number | 00800093 |
|---|---|
| Merk | Espa |
| Capaciteit | 45 m3/h @ 8 mwk |
| Voltage | 3x400V |
| Frequentie | 50 Hz |
| Max. opvoerhoogte in MWK | 14 |
| Max. debiet in m3/uur | 60 |
| Capaciteit in m3/h bij 5 MWK | 55 |
| Capaciteit in m3/h bij 10 MWK | 39 |
| Artikelnummer fabrikant | 7780006 |
| Aansluiting | 63 mm |
| Type / Model | Wiper |
| Materiaal pompdeel | Noryl |
| Vermogen in kilowatt | 2,00 |
| Materiaal waaier | Noryl |
Description

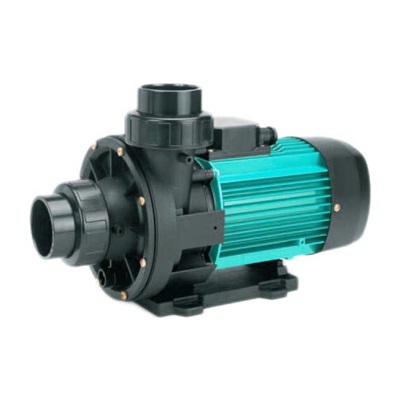

Quiet, one-stage centrifugal pump for water recirculation. With central suction.
Applications:
Water recirculation in portable pools and spas.

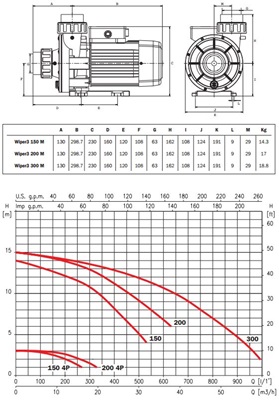

A high or low speed can be selected with the Wiper3 150 and 200. This can be a regulated as a fixed choice or via a switch. The pump characteristics are showed in the diagram at the 2- (2900 rpm) and 4- (1450 rpm) pole position. The product characteristics assume maxium rpm. See the datasheet for the exact data.
Materials:
Pump casing in glass-fiber reinforced polypropylene.
Motor connections in corrosion-proof materials.
Motor shaft in stainless steel AISI 420.
Impeller in fiberglass reinforced Noryl.
O'rings in NBR.
PDF download click here for technical specifications.
