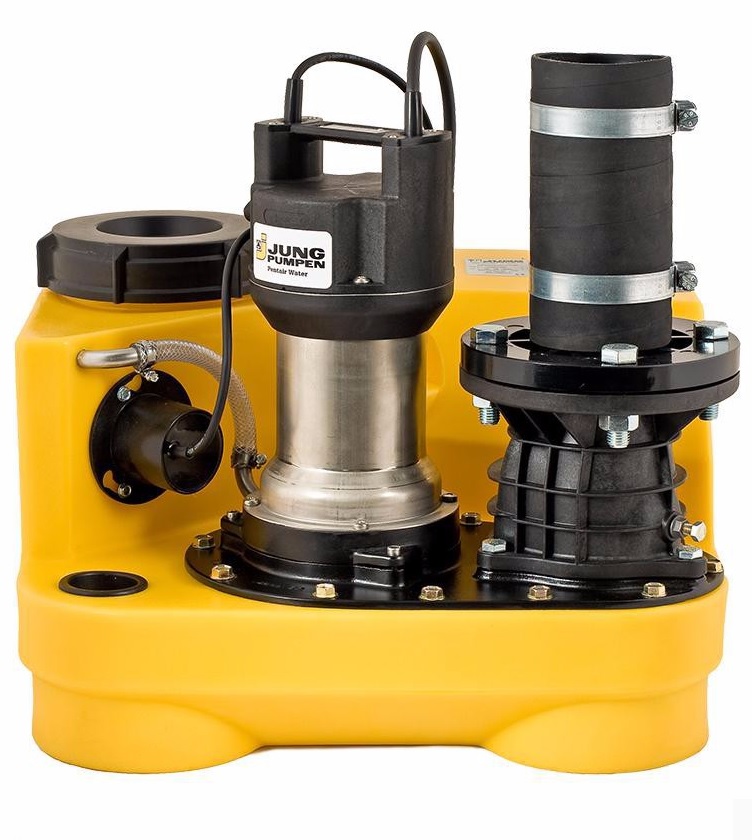

Jung sewage lifting station Compli 300 E

Jung sewage lifting station Compli 300 E
Jung sewage lifting station Compli 300 E
Jung sewage lifting station Compli 300 E
€ 2.171,00 ex vat
€ 2.626,91 inc vat
1 pcs in stock
Product ID 03000042
Brand Pentair
Voltage 1x230V
Frequency 50 Hz
Maximum head in mwc 7
Article number factory JP09496
Max particle passage size in mm 50
Connection DN 80
Type / Model Compli 300 E
Material pump part Gietijzer
Cable length in meters 4
Power in Kw 0,98
Materiaal waaier Kunststof
Waaier type Vortex
Jung Compli 300 E
Sewage lifting station
Motor: 0,98kW 1x230V 50Hz
Capacity: 15-30m³/h @ 7-1mWk
Free passage: 50mm
Connection: DN80
Including: 4 meter cable

The compli 300 E is the smallest sewage lifting station of our compli series. It has been designed for the disposal of sewage from housing units like basement dwellings. The compli 300 E is all-purposed, due to compact dimensions of its tank and numerous connection facilities.

The low weight and the plug with integrated control board ensures a facile installation, so that an electrician is not needed to start running the unit.

The submersible unit permits a general application in rooms which could be flooded.

The connector housing with integrated control unit must be installed in rooms which are well ventilated and cannot be flooded.

The powerful alternating current motor of the compli 300 is based on a rugged grey cast iron volute housing vat which grant a special stability and quiet running.
Keywords: Jung, compli, opvoerinstallatie, JP09496, pentair
Stock 1 pieces
