Jung Drainage pump US 102 D
| Art ID | 03000066 |
|---|---|
| Description | Jung Drainage pump US 102 D |
| In stock | |
| Delivery time | 5 business days |
| Price excluding taxes | €1.918,46 |
| Price incl. VAT | €2.321,34 |
€2.321,34
(Incl. btw)
Amount
Out of stock, please contact us. Delivery time 5 days.
Characteristics
| Article number | 03000066 |
|---|---|
| Merk | Pentair |
| Voltage | 3x400V |
| Frequentie | 50 Hz |
| Max. opvoerhoogte in MWK | 12 |
| Max. debiet in m3/uur | 28 |
| Artikelnummer fabrikant | JP00214 |
| Doorlaat in mm | 10 |
| Type / Model | US 102 |
| Materiaal pompdeel | Gietijzer |
| Kabellengte in meters | 10 |
| Vermogen in kilowatt | 1,06 |
| Geleverd met vlotter | Nee |
| Materiaal waaier | Kunststof |
| Waaier type | Vortex |
Description

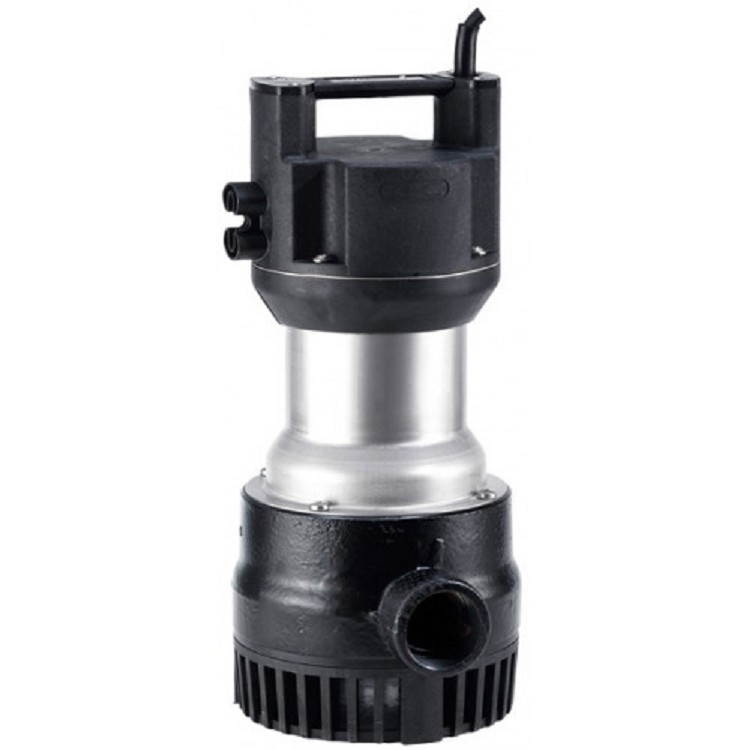

Jung US 102 D
Submersible pump
Motor: 1,06kW 3x400V 50Hz
Capacity: 2 - 28 m³/h @ 12 - 1 mwk
Free passage: 10mm
Connection: 1½" outlet
Including: 10 meter cable
The centrifugal submersible drainage pumps US 62-251 can be used wherever sewage water with solids up to 10 mm particle size occurs, e.g. in collecting sumps for ground water, or in permanent draining systems for clean water, or handling solids in suspension. They are
also ideal for pumping the sewage water from collecting sumps into which dishwashers or washing machines are discharging. For high temperature hot water in the industrial and commercial field we recommend the use of our US 73 and US 103 HE/HES.
This range of pumps is suitable for stationary and portable use. For easy removal of the pumps from deep sumps we recommend the use of our guide rail systems which provide ease of maintenance and inspection.
For automatic monitoring of the oil chamber a seal leak control can be connected.
Maximum cable length of the pumps is 10 m. 3-phase pumps with level control (US 151 DS, US 152 DS and US 251 DS) have a CEE-Plug with phase inverter.
The sewage pumps are tested by the German Institute for Construction Engineering and correspond to the valid construction and test principles.
PDF download click here for technical specifications.
